Why Track-Driven M2 G87 Owners Look Past the Factory Rotors
The M2 G87 already comes with a strong brake package. The M Compound six-piston front caliper clamps down hard, and BMW's factory tune is genuinely good for a fast street car. The rotor behind that caliper is still plain cast iron, and iron is the part of the system that runs out of answers first once you start using the car the way this chassis was built to be used.
Owners who bring us this conversion are usually doing one of two things: running the car on track days where the third or fourth hard stop starts to feel longer than the first, or driving it hard enough on a favorite road that they've noticed the pedal go a little soft after a string of downhill braking. Neither problem is a caliper problem. It's rotor mass and rotor heat capacity, and that's exactly what a carbon ceramic brakes conversion is built to answer without touching anything BMW engineered into the caliper or the master cylinder.
What wasn't working
- Iron rotor mass adding unsprung weight at the corner most affected by steering feel
- Pedal traveling longer after repeated hard stops from speed
- Heavy dust buildup on the factory wheel finish within days
- Surface rust forming on the rotor face after rain or a wash
What owners want instead
- A lighter front end without changing how the car turns in
- A pedal that feels the same on the last hard stop as the first
- Wheels that stay clean for weeks, not days
- No caliper swap, no bias change, no compromise on the factory setup
The Build: M2 G87 Carbon Ceramic Brakes Configuration
| Item | This M2 G87 build |
|---|---|
| Vehicle | BMW M2 (G87) |
| Front setup | Factory M Compound 6-piston caliper with 400mm STOPFLEX carbon ceramic rotor |
| Rear setup | Factory rear caliper with 370mm STOPFLEX carbon ceramic rotor |
| Pads | STOPFLEX low-dust ceramic compound |
| Wheels fitted | Factory 19-inch front / 20-inch rear |
| Axle scope | Front and rear rotor upgrade, factory calipers retained |
| Weight saved | About 25 kg total versus the stock iron rotors |
Confirm before you order
This build is sized to the factory M Compound brake package and the OEM 19-inch front / 20-inch rear wheels shown here. BMW's own press material confirms the M Compound package as the standard fitment on the G87, but if your car runs different calipers, non-standard wheels, or aftermarket brake hardware, get fitment confirmed before ordering — see BMW's M2 brake and chassis technical information for the factory baseline.
How Carbon Ceramic Brakes Change What the M2 Feels Like
Swapping iron for carbon ceramic brakes on this chassis isn't about adding stopping power the factory caliper doesn't already have. It's about giving that caliper a rotor that can absorb heat and shed mass without changing anything else in the system. The mechanical case for the swap is laid out in more depth in our breakdown of carbon ceramic versus cast iron brakes, but the short version is mass and heat capacity, corner by corner.
| STOPFLEX feature | Why it matters on the G87 | What you notice |
|---|---|---|
| Carbon ceramic rotors at roughly half the weight of same-size steel | The M2 is short and stiff, and reacts to every gram at the corner. Heavy iron rotors are unsprung mass the suspension and steering fight constantly. | About 25 kg gone where it counts — lighter turn-in, calmer reactions over broken pavement. |
| High-temperature stability, friction still holding near 0.3μ at 900°C | A car this quick puts serious energy through the brakes on a back road or a track session. Iron heat-soaks and the pedal goes long. | The brake stays composed deeper into hard use instead of fading once the rotor's cooked. |
| Continuous-fiber rotor construction | Long carbon strands carry load across the whole disc body instead of stopping at a chopped-fiber boundary, which matters under repeated heat cycling. | More consistent bite session after session, not just on the first hard stop. |
| Rust-free rotor surface | Iron rotors flash-rust after rain or a wash, and it shows badly behind the M2's open wheel design. | Clean rotor face every time you look through the spokes. |
| Low visible dust with matched STOPFLEX pads | Factory M pads load the wheel face fast on this chassis. | Wheels stay clean for weeks instead of days between washes. |
| Cold-tuned pad and rotor coating | A daily-driven M2 has to work the second it backs out of a cold garage. | First-stop bite that feels close to the factory system, no warm-up drama. |
What gets better
- Roughly 25 kg less unsprung, rotating mass for sharper steering feel
- Stronger resistance to fade on repeated hard stops or a track day
- Very low brake dust with matched STOPFLEX carbon ceramic brake pads
- No rust after rain, a wash, or a few days parked
- Street rotor life that can reach roughly 250,000–300,000 km off track, detailed on our carbon ceramic brakes lifespan page
What to confirm first
- Your car runs the factory M Compound brake package
- Front and rear rotor sizing matches the 400mm / 370mm setup here
- Your wheels match the factory 19-inch front / 20-inch rear fitment
- No aftermarket calipers or non-standard brake hardware are installed
- You're after lighter feel and heat resistance, not a bigger caliper conversion
If you drive the car strictly around town and never see a track or a long downhill run, iron rotors are cheaper and this conversion takes longer to pay for itself — that's a fair trade-off for a lot of owners, and we'd rather say so than oversell a build that's really aimed at repeated hard use. Where cost does make sense to weigh in, the full breakdown lives in our carbon ceramic brakes price and cost guide. If you're not sure your car matches the spec shown here, send us your details and we'll confirm BMW M2 (G87) fitment before you order through our BMW carbon ceramic brakes collection.
Fitment and Installation: Rotors Only, Calipers Stay Put
Because this build keeps the factory M Compound caliper on both axles, there's no bracket to machine and no caliper geometry to match. What we do have to get right is hat offset — the distance from the mounting face to the friction ring has to land exactly where the factory disc sat, or the caliper piston doesn't center on the pad the way BMW engineered it to.
The expensive detail most shops skip is checking that offset against the actual factory rotor on the car, not against a spec sheet number, because production tolerances on a six-piston caliper carrier leave less room for error than a single-piston rear setup. Miss it by a couple of millimeters and you get uneven pad wear that no amount of bedding-in will fix.
The install itself follows the same sequence as any rotor service: wheel off, caliper unbolted and supported, old rotor off the hub, new rotor on, caliper torqued back to spec, then a proper bedding cycle before the car sees real load. We ask for a few details before we cut anything, because getting this wrong on a six-piston front caliper is a more expensive mistake than most owners expect.
- Vehicle and chassis code (G87, confirm trim)
- Confirmation of the factory M Compound brake package
- Wheel diameter and spoke profile, front and rear
- Confirmation that no aftermarket caliper is installed
- How the car is actually driven — street, occasional track, or both
Bedding matters more with carbon ceramic brakes than with iron. Give the pads a proper transfer-layer cycle before you lean on the car hard, and avoid sitting stopped with the pedal pressed hard right after a track session — the rotor needs to cool evenly. Send us your build details through our fitment request form before you order and we'll walk through the specifics for your car.
What Changes After the Carbon Ceramic Brake Upgrade
We don't have an instrumented before-and-after for this specific car, and you should be skeptical of anyone who quotes exact stopping distances or lap-time deltas without a test sheet to back them up. What we can lay out is how this combination is built to behave in the situations that actually expose the difference between iron and carbon ceramic brakes.
| Situation | Factory setup | After the STOPFLEX upgrade |
|---|---|---|
| Repeated hard stops late in a track session | Pedal travel tends to increase as the iron rotor heat-soaks | Rotor keeps working at higher sustained temperature, pedal stays closer to where it started |
| Cold first stop on a winter morning | Iron bites normally once it warms slightly | Cold-tuned compound gives near-normal bite from the first stop, with extra margin worth leaving on the coldest days |
| Wheel cleanliness after a week of driving | Visible dust film builds up fast | Noticeably less dust with matched pads |
| Steering response over rough pavement | Heavier rotor adds to unsprung mass at the corner | Lighter rotor lets the suspension react more freely |
| Rotor appearance after rain or a car wash | Surface rust forms within days | No rust forms on the ceramic-glaze surface |
Take this table as engineering expectation, not a lab result. What we hear back most often from owners running this exact combination is that the pedal simply stops changing on them late in a hard session — not a dramatic transformation, just one less thing to think about when the car's working hard.

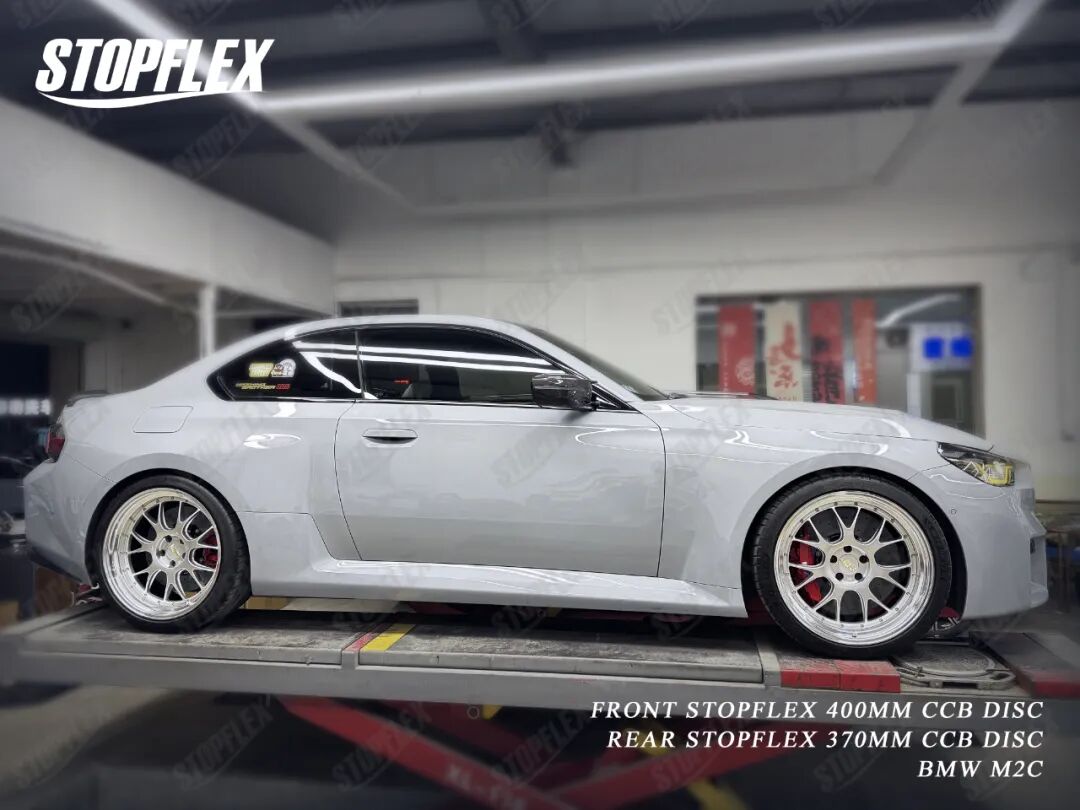

Build Gallery
BMW M2 G87 Carbon Ceramic Brakes FAQ
Do I have to swap calipers to run carbon ceramic brakes on an M2 G87?
No. This build keeps the factory M Compound six-piston front and rear calipers and replaces only the rotors, so pad clearance and pedal feel stay where BMW set them.
Will carbon ceramic rotors hold up to repeated hard stops on track days?
That is the point of the material. The carbon-silicon-carbide friction matrix keeps working at temperatures that push an iron rotor into fade, so the pedal stays consistent from an early stop to a late one in the same session.
Do these rotors fit under the factory 19-inch front and 20-inch rear M2 wheels?
This build is sized to the factory M Compound package and the OEM 19-inch front and 20-inch rear wheels shown here. A different brake package or a non-stock wheel needs fitment confirmed before you order.
Is a carbon ceramic rotor upgrade worth the cost if I only drive the car on the street?
It depends on how you use the car. Street-only driving still gets less dust, no rust, and a lighter front end, but the fade resistance that justifies the price tag shows up hardest on a track day or a long mountain descent.
How cold can it get before carbon ceramic brakes lose bite?
STOPFLEX tunes the pad compound and rotor coating for cold starts, so a first stop around -20°C still braked close to how the factory system feels, with a little extra margin worth leaving on the very first stops of a freezing morning.
