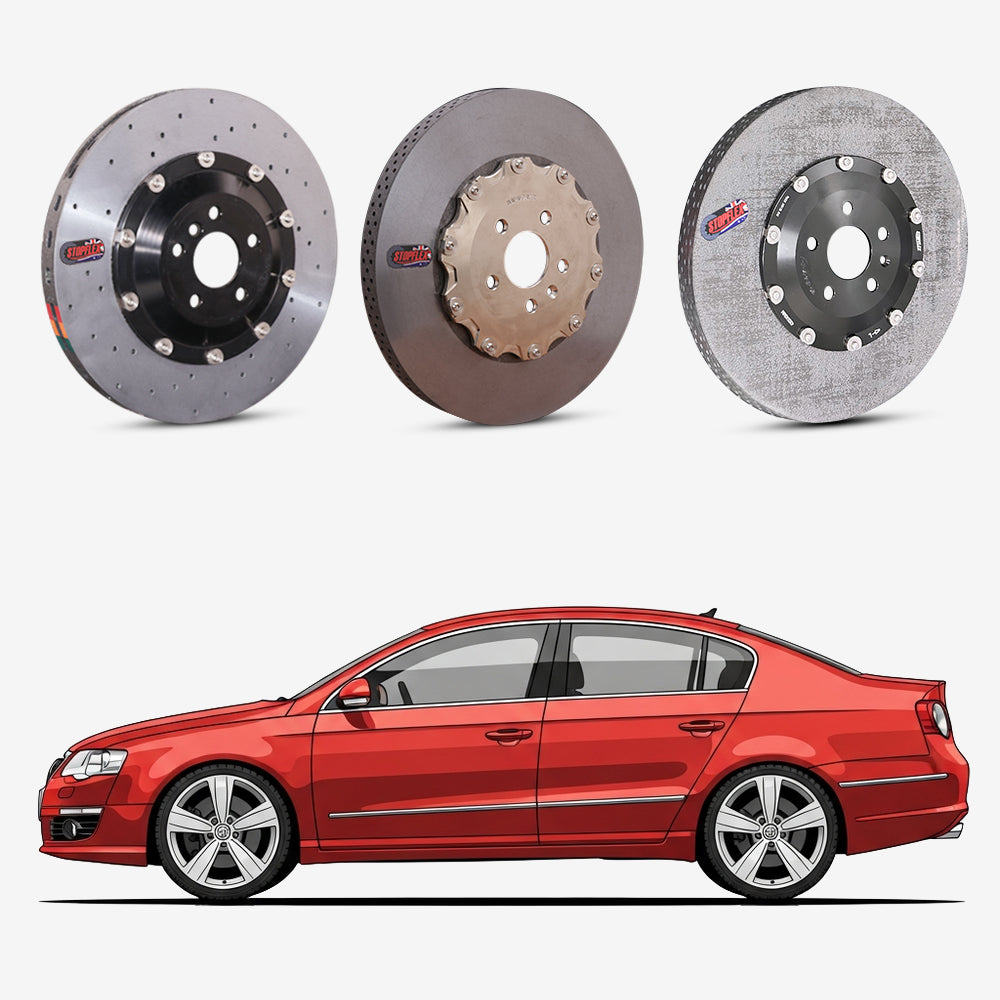

Volkswagen Passat R36 (B6/3C) Sedan & Wagon Carbon Ceramic Brakes Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2008-2010 Volkswagen Passat R36 (B6/3C) Sedan & Wagon Carbon Ceramic Brake Kits
The Passat R36 (B6/3C) is the rare 299 PS 4Motion flagship, sold as both sedan and wagon with genuine fast-road pace in a discreet body. Buyers usually want stronger fade resistance and less unsprung weight without losing OEM-style usability on a heavy AWD street car.
- Body style: Sedan & Wagon
- Front rotor reference: R36: 345mm
- Rear rotor reference: R36: 310mm
This is an OEM-size replacement kit. The rotors are built to the factory rotor spec and install with the factory caliper when the front caliper is a fixed design and the rotor spec matches. The included pad shape matches the OEM pad shape. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, provide the exact caliper model and StopFlex can supply the matching pad shape. Direct replacement is not confirmed if the front caliper is floating, or if the car already runs a non-OEM-offset rotor and the actual rotor dimensions cannot be supplied.
Why StopFlex CCB
Lightweight
Half the Weight, Sharper Handling. StopFlex carbon-ceramic rotors shed roughly half the mass of equivalent iron discs. This massive drop in unsprung weight instantly transforms your chassis, delivering sharper turn-in response and a significantly more refined road feel.
High-Temp Resistance
Minimal Brake Fade at 900°C (1652°F). While traditional iron rotors severely fade under heavy track loads, our CCB matrix holds a stable 0.30μ friction coefficient even at 900°C (1652°F). You get consistent, predictable stopping power when things get dangerously hot.
Corrosion Resistance
100% Rust-Free Durability. Say goodbye to flash rust after a car wash or heavy rain. The carbon-silicon carbide material is naturally impervious to corrosion, ensuring your brake rotors look completely clean and pristine no matter the weather conditions.
Long Lifespan
250,000+ km (155,000+ mi) Lifespan. Iron rotors typically require replacement around 100,000 km (62,000 mi). In normal street driving conditions, a StopFlex CCB rotor can easily last 250,000 to 300,000 km (155,000 to 186,000 mi), effectively outlasting the vehicle itself.
Ultra-Low Dust
Ultra-Low Visible Brake Dust. Heavy black dust destroying your wheel finish is a thing of the past. When paired with our matched StopFlex pads, these rotors generate virtually zero visible brake dust, keeping your premium wheels spotless for much longer.
Premium Visual Finish
Premium Mirror-Like Finish. StopFlex utilizes a patented ceramic formula that cures with a distinct crackle pattern. The surface is machined dead-smooth for high reflectivity, providing a premium aesthetic behind open wheels under the right lighting.
High Normal-Temp Friction
Strong Initial Bite (0.40μ+). With matched StopFlex pads, normal-temperature friction can exceed 0.40μ for a firmer pedal feel and strong initial bite.
Long-Fiber Construction
Continuous Long-Fiber Strength. StopFlex utilizes a continuous long-fiber 3D matrix. This structure is significantly stronger and offers higher thermal conductivity than standard chopped-fiber OEM CCM discs.
Cold First-Stop Confidence
Reliable Cold-Bite at -20°C (-4°F). Coated street rotors still deliver normal first-stop braking at -20°C (-4°F). Uncoated motorsport rotors are the exception.
Important heat note
Carbon ceramic does not shed heat as fast as steel. Long hard driving can heat-soak the rest of the brake system, including fluid, seals, and nearby parts. Unless the car already has strong brake cooling, or you plan to upgrade brake cooling, prolonged aggressive driving is not recommended.
Rotor options
Street Spec
Ceramic coating + cross-drilled face + large cooling channels.
Street setup: stay close to the factory R36 sizing if you want the safest fitment path and OEM-like balance.
Track-Day Spec
Ceramic coating + blank face + honeycomb cooling channels.
Trackday setup: choose the larger thermal-capacity option that still clears your wheels if the car sees repeated hard braking.
Motorsport Spec
No coating + blank face + honeycomb cooling channels. Not for normal street use.
Motorsport setup: use the most heat-tolerant package with matching caliper hardware and confirm brake cooling before ordering.
Pads
| Item | Details |
|---|---|
| Pad shape | The included StopFlex pad shape matches the OEM pad shape used by the retained caliper. |
| Aftermarket calipers | Provide the exact caliper model and StopFlex can supply the matching pad shape. |
| Pad details | For compound details and pad-specific parameters, see the StopFlex Ceramic Brake Pad for CCB Rotor product page. |
What’s included
| Item | Included |
|---|---|
| CCB rotors | Full-car set |
| CCB brake pads | Full-car set |
| 7075 aluminum floating rotor hats | Full-car set |
| Stainless floating hardware | Full-car set |
| Order scope | Default listing includes front set + rear set. Front-only or rear-only can be ordered separately. |
FAQ
Can I upgrade my Volkswagen Passat R36 (B6/3C) to a StopFlex carbon ceramic brake kit while keeping the factory calipers?
Usually yes if the kit is designed around the stock R36 345 mm front and 310 mm rear layout. If you already run an aftermarket big-brake kit, compatibility depends on that exact caliper, bracket, and hat offset, so confirm hardware before ordering.
What is the correct StopFlex carbon ceramic brake size for my Volkswagen Passat R36 (B6/3C)?
For this exact row, the reference sizes are 345 mm front and 310 mm rear. That is the cleanest starting point unless you are intentionally moving to a different caliper and wheel-clearance-checked upgrade path.
Is a StopFlex carbon ceramic brake kit a good daily-driver upgrade for a Volkswagen Passat R36, including cold first stops?
Yes, if you want a road-focused upgrade and still use the car as a normal sedan or wagon. The key is choosing the street-oriented setup so cold bite and low-speed manners stay predictable rather than overbuilding the car for occasional use.
Does my Volkswagen Passat R36 need extra cooling with a StopFlex carbon ceramic brake kit for prolonged hard use?
For fast road use, usually not. For repeated downhill, autobahn-style, or track-session braking in a heavy AWD R36, better airflow and a heat-aware setup are worth considering so the system stays consistent instead of relying on rotor material alone.
Need fitment confirmation?
Send the exact vehicle details and current brake setup before ordering.
