2025-2026+ Zeekr 7X Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

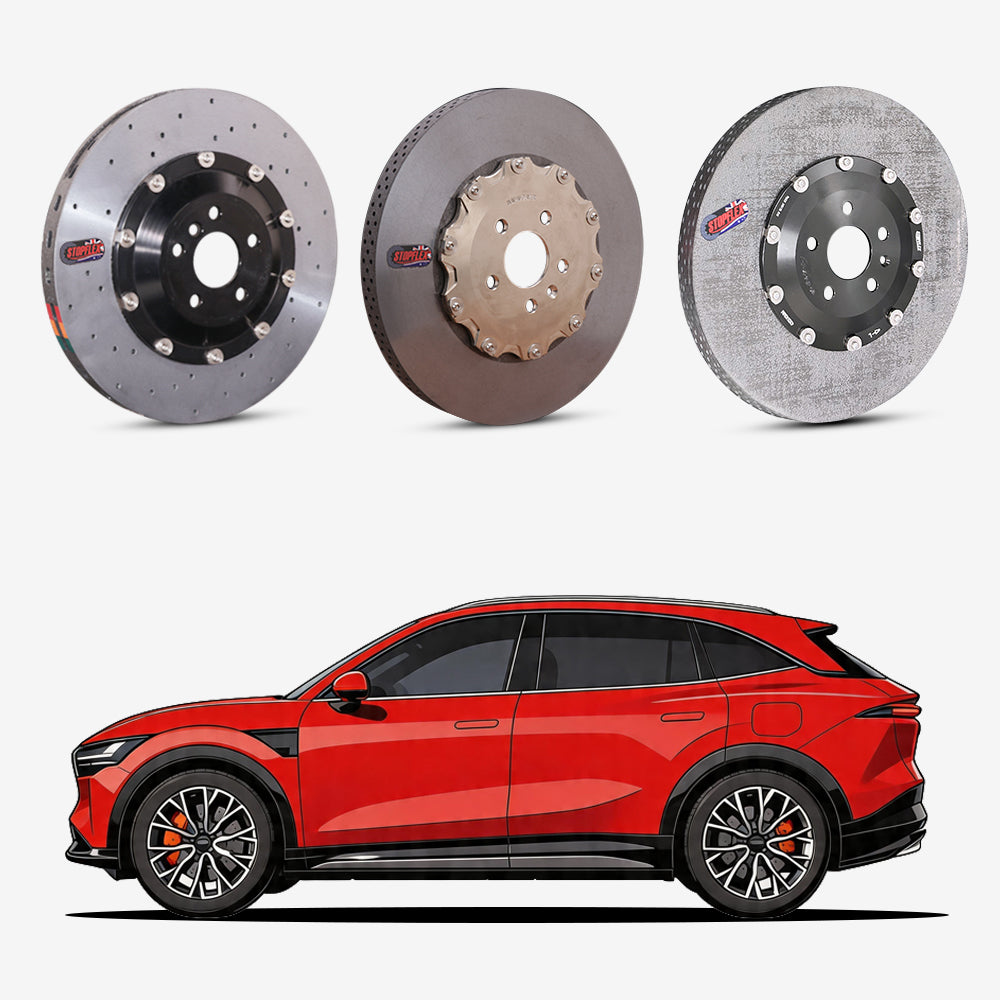

2025-2026+ Zeekr 7X Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2025-2026+ Zeekr 7X is a heavy, high-torque EV, so repeated high-speed stops can put more heat into the factory-size iron discs than regenerative braking can remove from the job. This StopFlex OEM-replacement kit keeps the 7X brake package at 380mm front and 380mm rear for the 4-piston rear setup, replacing the rotors, pads, hats, and floating hardware with carbon-ceramic components built for lower rotating mass, lower visible dust, and more stable friction under heat.
- Front rotor reference is 380mm for the Zeekr 7X, matched to an OEM-size StopFlex carbon-ceramic replacement rotor rather than an oversized caliper conversion.
- Rear rotor reference is 380mm only for the Zeekr 7X 4-piston rear brake configuration; other rear brake layouts must be checked before ordering.
- The kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware, so the thermal ring and mounting system are supplied as a matched package for this 7X brake size.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Zeekr 7X |
| Model years | 2025-2026+ |
| Front rotor reference | 7X: 380mm |
| Rear rotor reference | 7X (4-Piston): 380mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 19" (for the 380 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 380 mm rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this StopFlex kit fit every 2025-2026+ Zeekr 7X trim?
No. This page is limited to Zeekr 7X vehicles using the listed OEM-size 380mm front rotor and 380mm rear rotor with the 4-piston rear brake setup. Confirm trim, VIN, wheel size, and front/rear rotor measurements before ordering.
Does the kit keep the factory parking brake and auto-hold functions?
This OEM-replacement configuration is designed around the factory Zeekr 7X caliper locations and rear brake layout, so EPB and auto-hold compatibility depend on matching the exact 4-piston rear setup listed for this page.
Why switch a Zeekr 7X from iron rotors to carbon-ceramic rotors?
Carbon-ceramic rotors reduce rotating and unsprung mass, produce much less visible brake dust, and maintain friction stability at temperatures that can make heavy EV iron rotors fade or develop vibration after repeated hard stops.
What should I verify before placing the order?
Measure the current front and rear rotor diameters, confirm the rear caliper is the 4-piston version, record wheel diameter and inner barrel clearance, and provide the VIN so the hats, pads, and floating hardware are matched to the correct 7X configuration.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
