2021-2026+ Zeekr 001 / FR Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

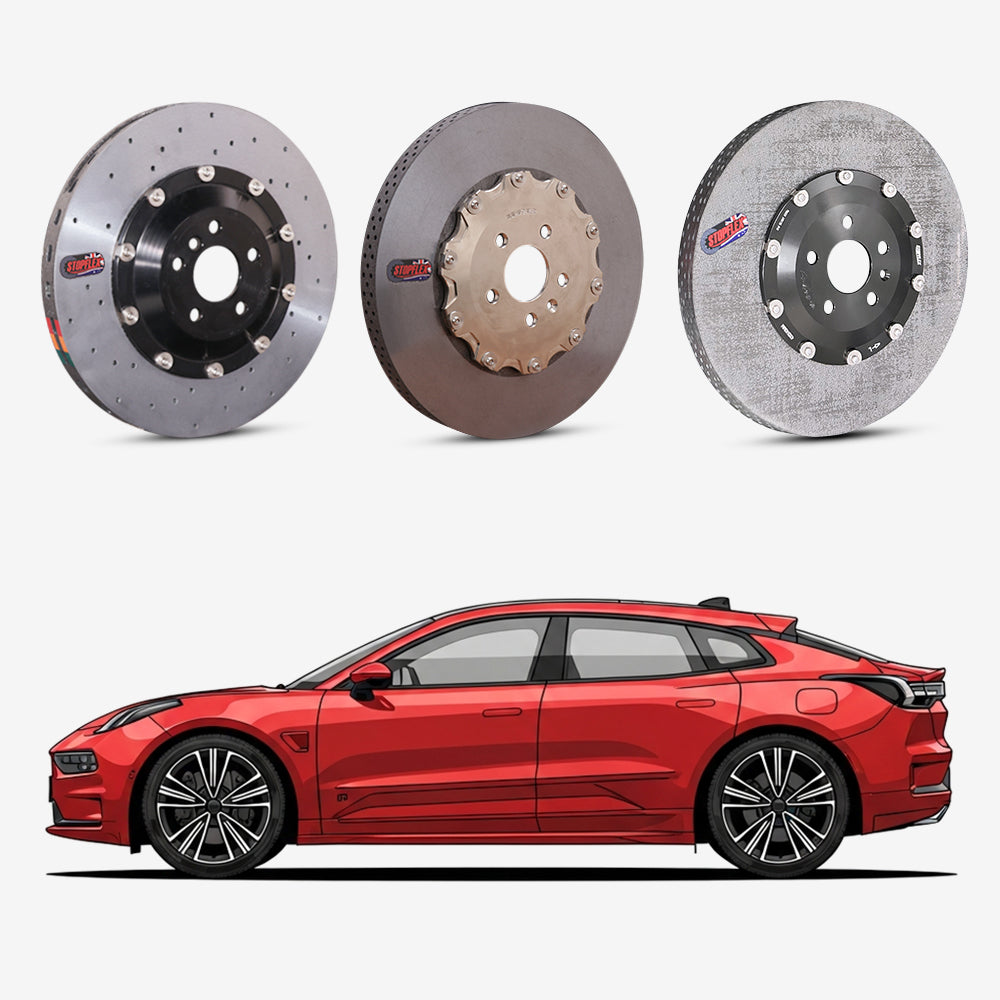

2021-2026+ Zeekr 001 / FR Carbon Ceramic Brake Kit — OEM-Size Replacement
The Zeekr 001 FR uses very large factory carbon-ceramic brakes—420 mm front and 410 mm rear—so replacement cost and exact sizing matter before ordering. This StopFlex OEM-size kit replaces the rotors, pads, hats, and floating hardware for the listed 001 / FR brake packages, keeping the factory caliper architecture while cutting brake dust and improving heat stability compared with iron rotors on heavy EV use.
- FR fitment is built around the 420 mm front and 410 mm rear carbon-ceramic rotor package used with the factory high-performance brake system.
- Zeekr 001 fitment is limited to the listed OEM-size rotor references: 345 mm or 380 mm front, and 345 mm or 350 mm rear.
- The kit includes carbon-ceramic rotors, matched pads, hats, and floating hardware, so the wear components around the OEM calipers are replaced as a system.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Zeekr 001 / FR |
| Model years | 2021-2026+ |
| Front rotor reference | FR: 420mm (CCB); 001: 345mm, 380mm |
| Rear rotor reference | FR: 410mm (CCB); 001: 345mm, 350mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 21" (for the 420 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 420 mm rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2021-2026+ Zeekr 001 or 001 FR?
No. Compatibility is limited to the exact trim and rotor-size combinations listed for this page. Confirm whether your car has the FR 420/410 mm carbon-ceramic setup or the 001 345/380 mm front and 345/350 mm rear setup before ordering.
Does this replace the calipers?
No. This is an OEM-size replacement kit for the existing brake package. It includes carbon-ceramic rotors, pads, hats, and floating hardware, and is intended to work with the factory calipers for the listed Zeekr 001 / FR configurations.
Will the electronic parking brake and auto-hold still work?
The kit does not change the vehicle’s brake control logic. For rear fitment, the correct rotor size and rear hardware must match the car’s factory EPB-equipped brake package so the original parking brake and auto-hold functions remain integrated.
Why replace the factory iron or carbon-ceramic rotors with StopFlex carbon-ceramic?
On a heavy, high-output EV like the Zeekr 001 / FR, carbon-ceramic rotors reduce unsprung mass, produce less visible dust than iron, resist corrosion, and maintain more stable friction under repeated high-temperature braking.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
