2019-2025 Volvo V60 Recharge T8 Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

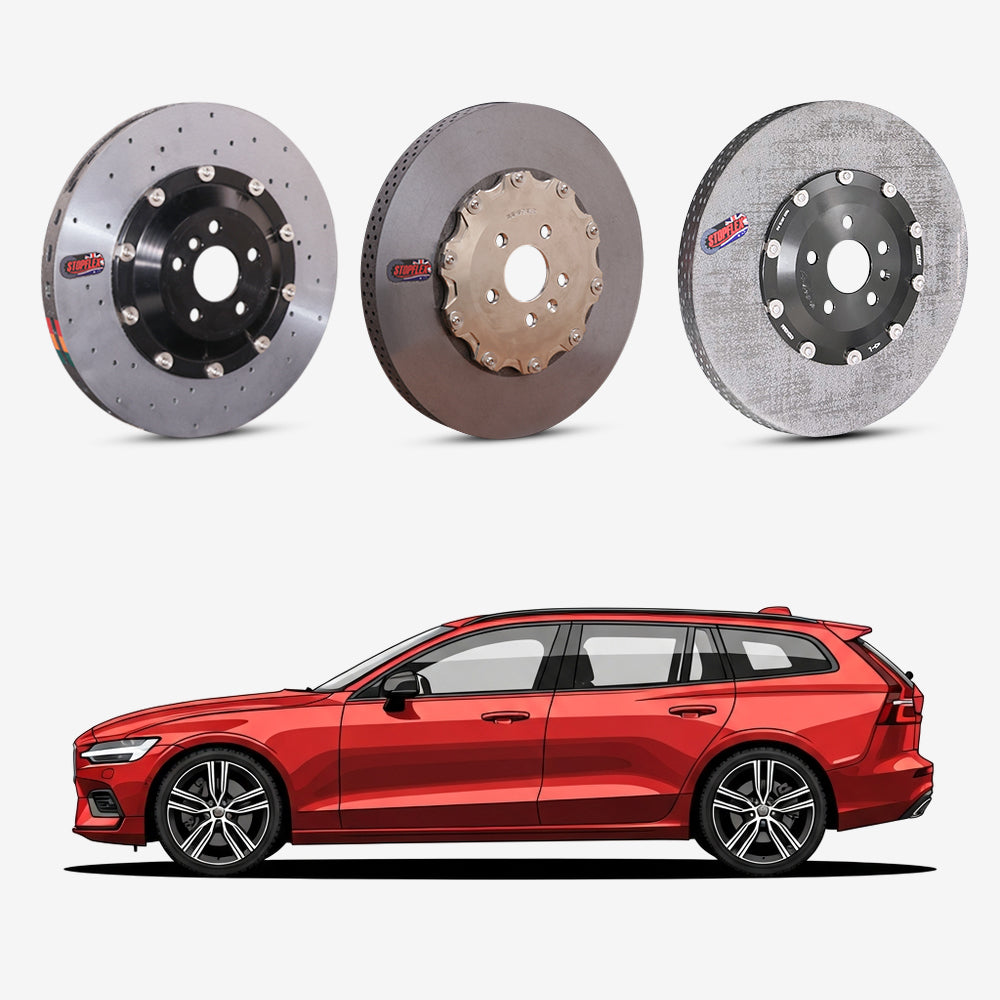

2019-2025 Volvo V60 Recharge T8 Carbon Ceramic Brake Kit — OEM-Size Replacement
This OEM-replacement carbon-ceramic kit is for 2019-2025 Volvo V60 Recharge T8 owners replacing the factory 345mm or Polestar Engineered 371mm front brake package with the matching 320mm rear setup. The V60 T8 is a heavy plug-in hybrid wagon, so the payoff is lower rotating mass, cleaner wheels, and more stable brake response when repeated highway stops or mountain use push iron rotors into heat soak. The kit includes carbon-ceramic rotors, pads, hats, and floating hardware sized around the listed Volvo caliper and rotor combinations only.
- Front fitment is built around the two V60 Recharge T8/Polestar Engineered references on this page: 345mm front rotors or 371mm front rotors, both paired with 320mm rear rotors.
- Carbon-ceramic rotors reduce brake dust on the V60’s open wheel designs and cut rotating mass versus same-size iron discs without changing the OEM-size brake envelope.
- Floating hats and hardware allow radial and axial heat movement, which matters on a 4,400-lb-class T8 plug-in hybrid that can load the front brakes hard after EV-assisted acceleration.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo V60 Recharge T8 |
| Model years | 2019-2025 |
| Front rotor reference | T8/Polestar Eng: 345mm, 371mm |
| Rear rotor reference | T8/Polestar Eng: 320mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 345 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 345 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2019-2025 Volvo V60 Recharge T8?
No. This page is limited to V60 Recharge T8 and Polestar Engineered brake setups that match the listed rotor references: 345mm or 371mm front and 320mm rear. Confirm the rotor diameter on the car, the front caliper package, and wheel clearance before ordering.
Does the rear electronic parking brake still work?
Yes, the rear carbon-ceramic rotor and pad package is designed as an OEM-size replacement around the V60 Recharge T8’s 320mm rear brake setup, so the factory rear caliper functions, including EPB and auto-hold behavior, are retained when installed correctly.
Why switch this V60 T8 from iron rotors to carbon ceramic?
The main reasons are lower brake dust, lower rotating mass, and better heat stability during repeated braking. On the V60 Recharge T8, those gains matter because the plug-in hybrid drivetrain adds weight while the wagon is often driven on the same roads and speeds as a sport sedan.
What should I verify before I order?
Verify model year, T8/Recharge or Polestar Engineered trim, front rotor size, rear 320mm rotor size, caliper type, and wheel clearance. If the car has a previous brake conversion or non-OEM wheels, measure the actual rotor and caliper envelope rather than relying on trim name alone.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
