2020-2025 Volvo S60 Recharge T8 Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2020-2025 Volvo S60 Recharge T8 Carbon Ceramic Brake Kit — OEM-Size Replacement

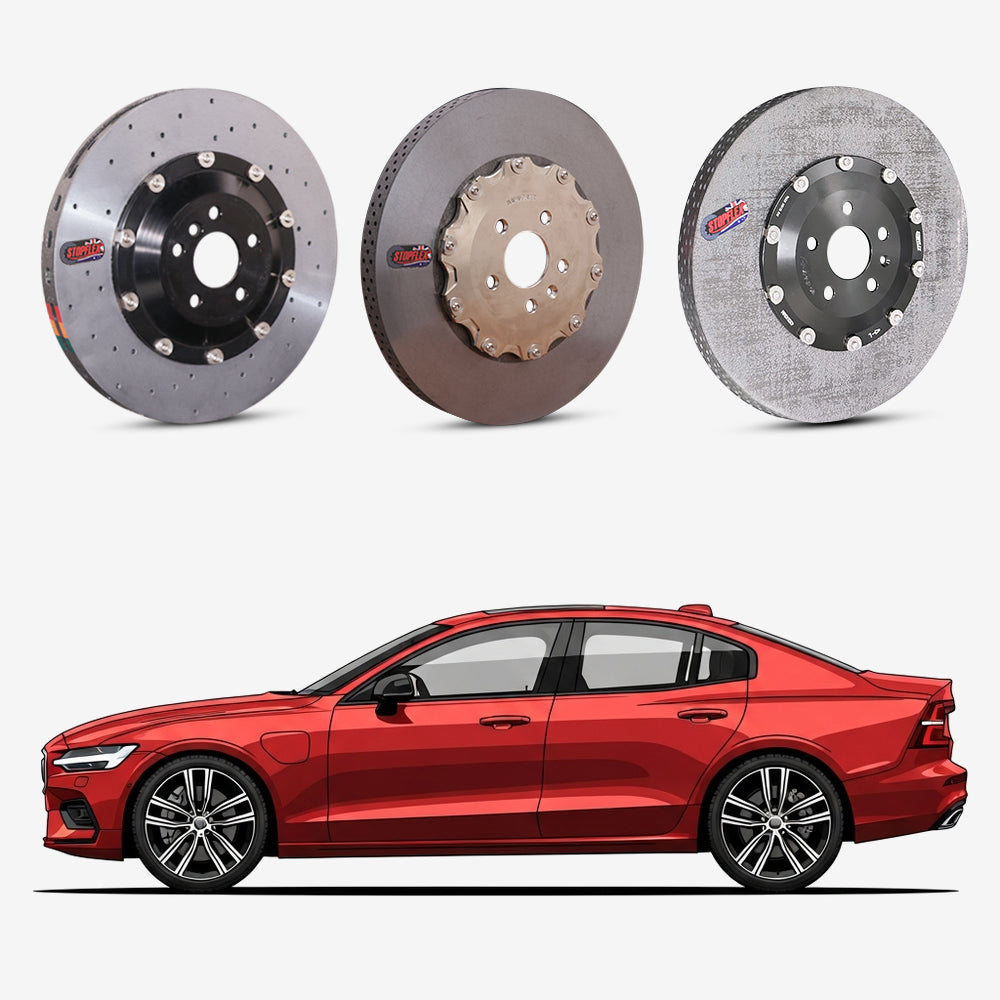

The 2020-2025 Volvo S60 Recharge T8 is a heavy plug-in hybrid sedan, so repeated high-speed stops can push the factory-size iron rotors into heat fade, pad transfer, and heavy dust. This StopFlex OEM-replacement kit is built around the S60 T8 brake packages listed for this page: 345 mm or 371 mm front rotors with 320 mm rear rotors. Carbon-ceramic discs, matching pads, aluminum hats, and floating hardware reduce rotating mass and brake dust while keeping the rotor diameter matched to the original caliper package.
- Matches the S60 Recharge T8 rotor configurations listed for this page: 345/320 mm or 371/320 mm, with size selection confirmed before production.
- The 371 mm front option corresponds to the larger Polestar Engineered-style front brake package used on select S60 T8 applications.
- The 320 mm rear rotor package retains the factory rear brake architecture, including the vehicle’s electronic parking brake hardware when installed with the correct rear fitment.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo S60 Recharge T8 |
| Model years | 2020-2025 |
| Front rotor reference | T8/Polestar Eng: 345mm, 371mm |
| Rear rotor reference | T8/Polestar Eng: 320mm |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 18" (for the 345 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 345 mm rotor, so the minimum wheel size is 18". Wheels under 18" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2020-2025 Volvo S60 Recharge T8?
No. This page is limited to the S60 Recharge T8 trims and brake sizes listed here. Confirm whether your car has the 345 mm front rotor or the 371 mm Polestar Engineered-style front rotor, and confirm the 320 mm rear rotor before ordering.
Will the electronic parking brake and auto-hold still work?
Yes, when the kit is ordered for the correct 320 mm rear setup. StopFlex replaces the rear friction disc, pads, hat, and floating hardware; it does not delete the factory rear caliper or EPB actuator.
Why replace the OEM iron rotors with carbon ceramic on this S60 T8?
The Recharge T8’s plug-in hybrid weight makes brake heat and rotor dust more noticeable during fast road use and repeated stops. Carbon-ceramic rotors reduce rotating mass, resist heat-related fade, and produce less visible dust than conventional iron rotors.
What should I verify before ordering the 371 mm front version?
Confirm the front rotor diameter on the car, the front caliper package, and wheel barrel clearance. The 371 mm package needs more radial and caliper clearance than the 345 mm front setup, so wheel fitment must be checked before production.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
