2022-2026+ Mercedes-Maybach S680 / S580 (Z223) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

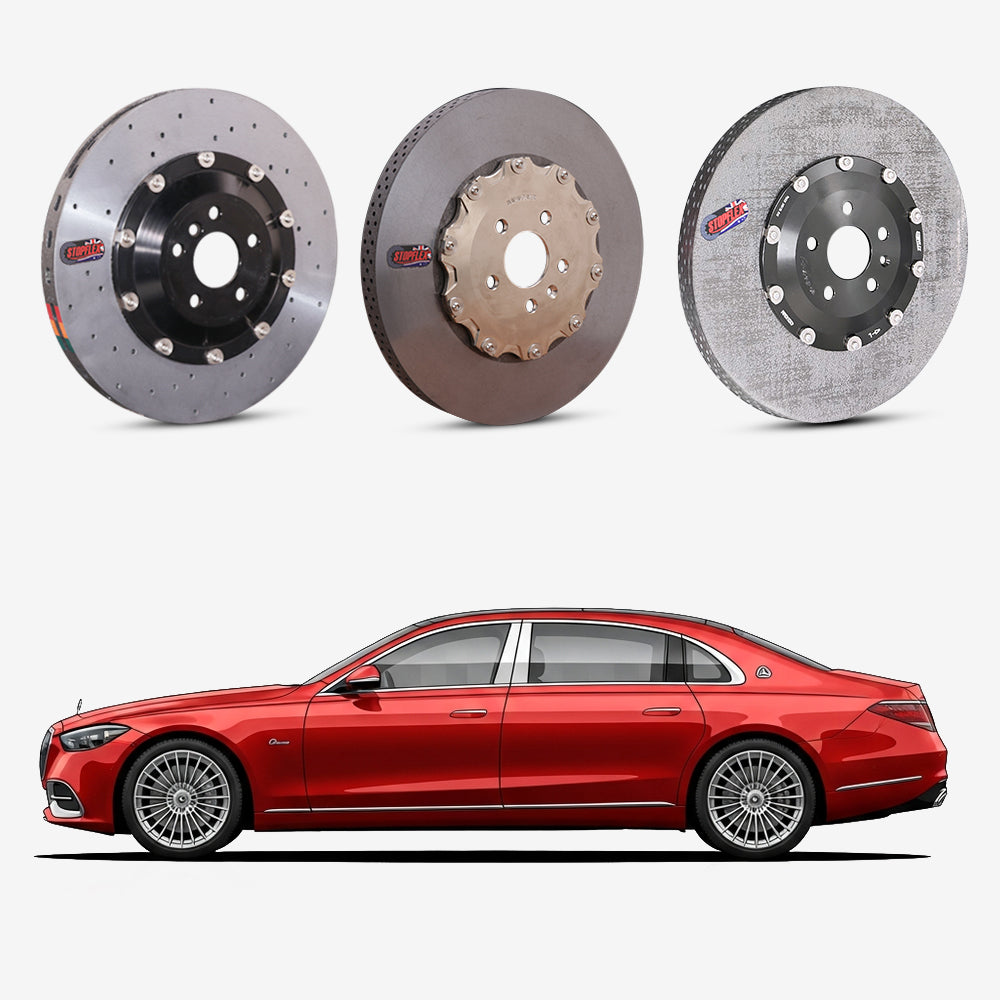

2022-2026+ Mercedes-Maybach S680 / S580 (Z223) Carbon Ceramic Brake Kit — OEM-Size Replacement
The Z223 Mercedes-Maybach S680 and S580 place high thermal load on the brakes because the car is heavy, quiet, and often driven in stop-and-go urban use where brake dust and rotor heat show immediately. This OEM-size StopFlex replacement uses 390mm front and 360mm rear carbon-ceramic rotors with matching pads, hats, and floating hardware for the factory brake package listed on this page. The goal is lower rotating mass, cleaner wheels, and more stable pedal feel without changing the OE caliper locations or rotor diameters.
- Built only for the 2022-2026+ Mercedes-Maybach S680 / S580 Z223 brake package using 390mm front and 360mm rear rotors.
- Carbon-ceramic friction rings reduce brake dust on the Maybach’s large open-face wheels compared with conventional iron rotors and pads.
- Two-piece rotors with dedicated hats and floating hardware replace the factory-size discs while keeping the Z223 caliper mounting geometry.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-Maybach S680 / S580 (Z223) |
| Model years | 2022-2026+ |
| Front rotor reference | S680/S580: 390mm |
| Rear rotor reference | S680/S580: 360mm |
| Page type | OEM-size carbon ceramic replacement |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
Carbon ceramic rotor diameter sets the smallest wheel that clears the caliper. Confirm your wheel diameter and spoke clearance with StopFlex before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2022-2026+ Mercedes-Maybach S680 or S580?
No. This page is limited to Z223 S680 / S580 cars with the 390mm front and 360mm rear rotor setup. Confirm the rotor diameters, trim, and brake package before ordering because Mercedes-Maybach S-Class brake hardware can vary by market and option.
Does the kit keep the factory rear electronic parking brake and auto-hold functions?
Yes, it is designed as an OEM-size rotor and pad replacement for the listed Z223 brake setup, so the factory rear caliper, EPB control strategy, and brake-hold functions remain in use. Installation still requires correct pad bedding and electronic service-mode procedures.
Why switch a Maybach S680 or S580 from iron rotors to carbon-ceramic?
The main reasons are less visible dust, lower unsprung and rotating mass, and better heat stability during repeated braking. On a heavy long-wheelbase Maybach, those benefits matter most in wheel cleanliness, steering response, and consistent pedal feel rather than lap-time use.
What should I confirm before placing the order?
Confirm the car is a Z223 Mercedes-Maybach S680 or S580, verify 390mm front and 360mm rear rotor diameters, and send wheel details if the car has non-OE wheels. The kit is not a universal S-Class brake conversion.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
