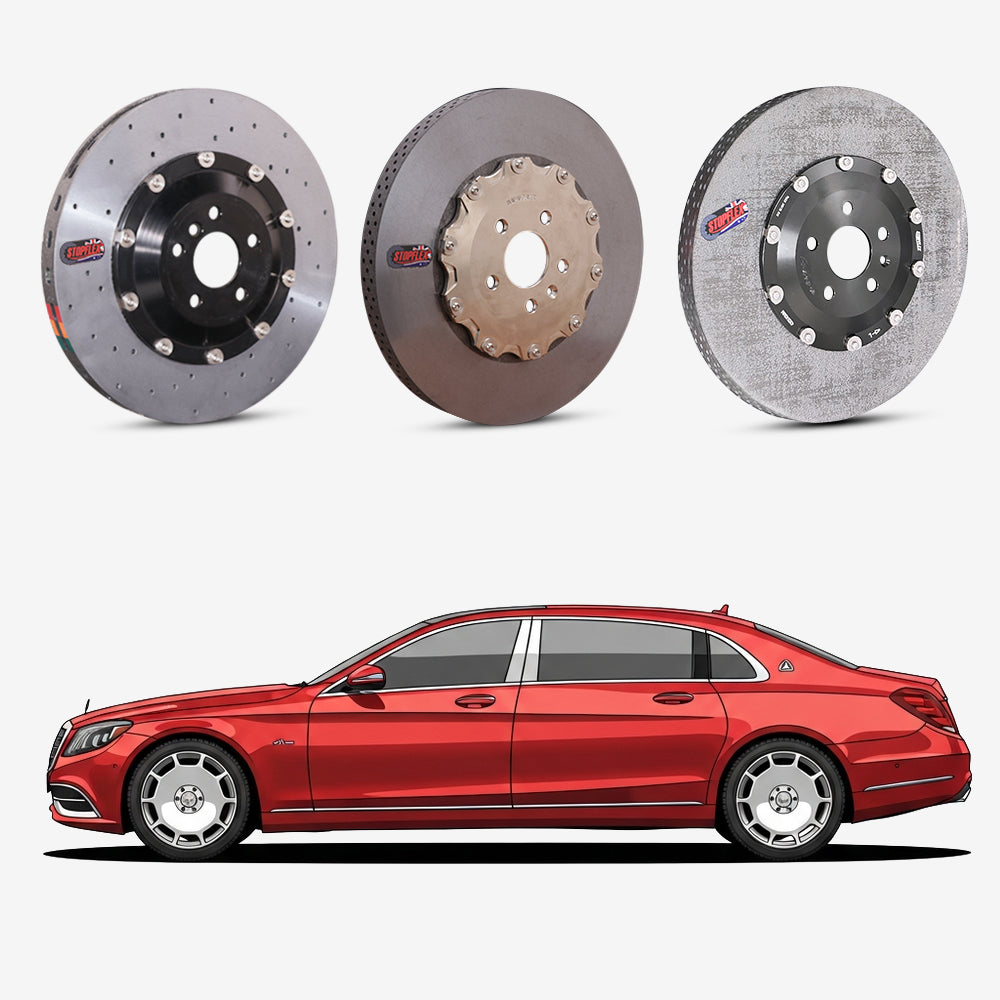

2015-2020 Mercedes-Maybach S650 / S600 / S560 / S550 (X222) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2015-2020 Mercedes-Maybach S650 / S600 / S560 / S550 (X222) Carbon Ceramic Brake Kit — OEM-Size Replacement
This StopFlex OEM-size carbon-ceramic kit is for 2015-2020 Mercedes-Maybach S650, S600, S560, and S550 X222 sedans built with the 390mm front and 360mm rear brake package. It replaces the heavy factory iron rotors with carbon-ceramic rotors, matched pads, hats, and floating hardware to reduce brake dust, control heat on repeated high-speed stops, and keep the factory caliper layout. The fitment decision is simple: confirm your X222 trim and rotor sizes before ordering.
- Built around the Maybach X222 390mm front / 360mm rear rotor references used on the S650, S600, S560, and S550 brake package listed for this page.
- OEM-size replacement design retains the factory calipers, so the conversion targets rotor material, heat behavior, dust output, and rotating mass without changing the brake layout.
- Carbon-ceramic rotors are suited to the X222 Maybach’s high curb weight and V8/V12 highway speed because they resist heat soak better than iron under repeated deceleration.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-Maybach S650 / S600 / S560 / S550 (X222) |
| Model years | 2015-2020 |
| Front rotor reference | S650/S600/S560/S550: 390mm |
| Rear rotor reference | S650/S600/S560/S550: 360mm |
| Page type | OEM-size carbon ceramic replacement |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
Carbon ceramic rotor diameter sets the smallest wheel that clears the caliper. Confirm your wheel diameter and spoke clearance with StopFlex before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2015-2020 Mercedes-Maybach X222?
No. This page is limited to the S650, S600, S560, and S550 X222 trims with 390mm front rotors and 360mm rear rotors. Verify the rotor diameters or OE part references before ordering.
Does the kit keep the factory electronic parking brake and auto-hold functions?
Yes, when installed on the correct X222 390mm/360mm brake setup, the kit works with the factory rear caliper architecture, so the EPB and brake-hold functions are not deleted.
Why switch this Maybach from iron rotors to carbon ceramic?
The main gains are lower brake dust on the large Maybach wheels, reduced rotating mass versus iron, and more stable friction behavior during repeated high-speed stops on a heavy long-wheelbase sedan.
What should I confirm before placing the order?
Confirm the car is a 2015-2020 Mercedes-Maybach S650, S600, S560, or S550 X222 and that the existing brake package uses 390mm front and 360mm rear rotors. Also confirm wheel clearance if the car no longer has its factory wheels.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
