2025-2026+ Lotus Emeya Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.

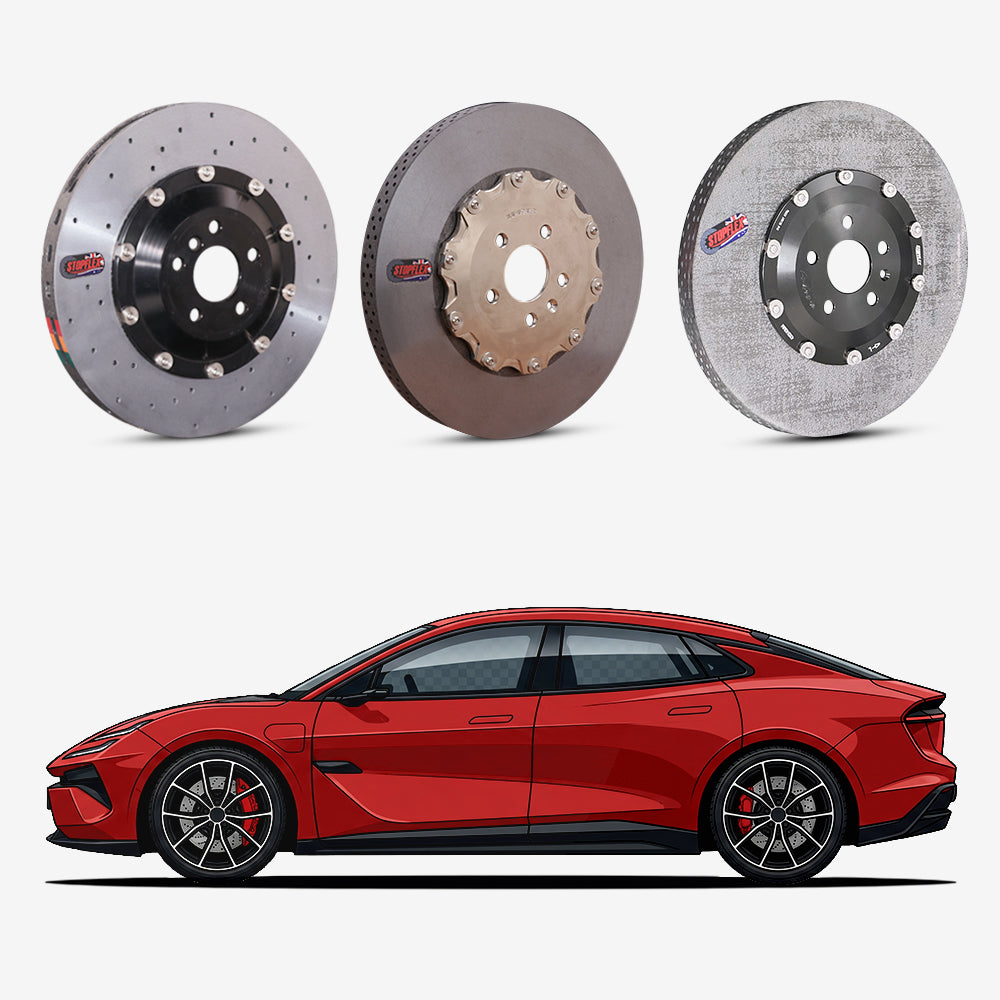

2025-2026+ Lotus Emeya Carbon Ceramic Brake Kit — OEM-Size Replacement
The 2025-2026+ Lotus Emeya is a high-mass electric GT, so the brake question is repeatable heat control, low dust, and exact fitment—not larger-show rotor sizing. This OEM-size StopFlex kit replaces the factory carbon-ceramic hardware with 412 mm front and 397 mm rear carbon-ceramic rotors, matching pads, hats, and floating hardware for the listed Emeya brake package. It is built for owners replacing worn or damaged OEM CCB parts while keeping the factory calipers, wheel package, and rear electronic parking-brake function tied to the original setup.
- OEM-size Emeya replacement: 412 mm front carbon-ceramic rotors and 397 mm rear carbon-ceramic rotors for the listed factory CCB brake configuration.
- Includes carbon-ceramic rotors, matched pads, aluminum hats, and floating hardware so the service package replaces the wear system rather than mixing old mounting parts with new rings.
- Designed around the Emeya’s factory calipers and rear EPB brake layout, not a caliper-conversion kit or oversized big-brake package.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Lotus Emeya |
| Model years | 2025-2026+ |
| Front rotor reference | Emeya: 412mm, 412mm (CCB) |
| Rear rotor reference | Emeya: 397mm, 397mm (CCB) |
| Page type | OEM-size carbon ceramic replacement |
| Minimum wheel size | 21" (for the 412 mm rotor) |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
This setup uses a 412 mm rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this kit fit every 2025-2026+ Lotus Emeya?
No. This page is only for Emeya cars that match the listed OEM-size carbon-ceramic brake references: 412 mm front and 397 mm rear. Confirm the factory rotor size and brake package before ordering.
Does the kit keep the factory electronic parking brake and auto-hold behavior?
Yes, when installed on the matching Emeya rear brake configuration. The kit replaces the rotors, pads, hats, and floating hardware while retaining the factory rear caliper and EPB system.
Why replace the OEM carbon-ceramic brakes with StopFlex instead of dealer parts?
The Emeya uses large 412 mm front and 397 mm rear CCB rotors, so OEM replacement cost can be high after cracking, wear, or impact damage. StopFlex provides a complete rotor-and-pad service package built to the same factory sizing.
What should I confirm before ordering?
Confirm the car is a 2025-2026+ Lotus Emeya with the listed 412 mm front and 397 mm rear CCB setup, verify wheel clearance has not changed with aftermarket wheels, and send rotor photos or measurements if the brake package is unclear.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
