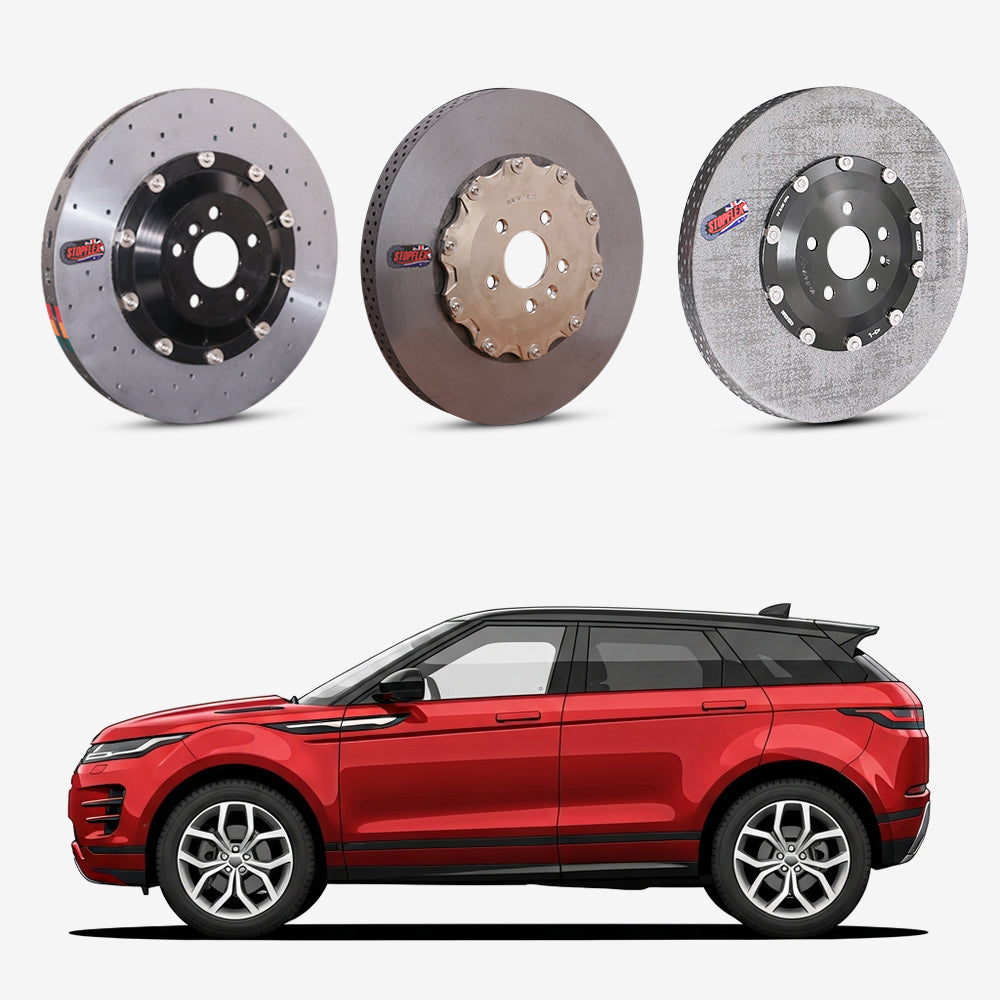

2019-2026+ Land Rover Range Rover Evoque (L551) Carbon Ceramic Brake Kit
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
2019-2026+ Land Rover Range Rover Evoque (L551) Carbon Ceramic Brake Kit — OEM-Size Replacement
The L551 Range Rover Evoque uses a compact SUV brake package with a 349 mm front rotor option and 300 mm or 325 mm rear rotor references, so rotor diameter must be matched before ordering. This StopFlex OEM-size carbon-ceramic replacement kit is built for those listed sizes and replaces the iron discs with carbon-ceramic rotors, matched pads, hats, and floating hardware to reduce brake dust, improve repeated-stop heat stability, and cut rotating mass without changing the factory caliper layout.
- Built around the L551 Evoque 349 mm front rotor reference, with rear fitment limited to the listed 300 mm or 325 mm rotor configurations.
- OEM-size replacement design keeps the factory calipers and wheel-position relationship instead of converting the Evoque to an oversized big-brake package.
- Carbon-ceramic rotors reduce visible iron dust on Evoque open-spoke wheels and maintain more consistent friction during repeated highway-speed or mountain-road stops.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Land Rover Range Rover Evoque (L551) |
| Model years | 2019-2026+ |
| Front rotor reference | L551: 349mm |
| Rear rotor reference | L551: 300mm, 325mm |
| Page type | OEM-size carbon ceramic replacement |
For OEM replacement orders, StopFlex builds around the factory rotor specification shown for this vehicle. Front floating-caliper setups require manual review before production. If the car uses aftermarket calipers such as Brembo, AP Racing, Alcon, or Wilwood, the order can still be built, but the exact caliper model, pad shape, and rotor dimensions must be confirmed before production.
Carbon ceramic rotor diameter sets the smallest wheel that clears the caliper. Confirm your wheel diameter and spoke clearance with StopFlex before ordering.
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Custom Rotor Hat Color
Every StopFlex OEM replacement order can be built with a custom rotor hat color, giving the carbon ceramic rotor package a cleaner match with the wheel, body color, and overall build style.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| CCB rotors | Full-car set by default |
| CCB brake pads | Matched for StopFlex carbon ceramic rotors |
| 7075 aluminum floating rotor hats | Vehicle-specific fitment |
| Stainless floating hardware | Full-car hardware set |
| Rotor hat color | Custom rotor hat colors are available for every OEM replacement order. |
| Order scope | Default listing is full-car set. Front-only or rear-only orders can be arranged after confirmation. |
FAQ
Will this fit every 2019-2026+ Range Rover Evoque L551?
No. This page is only for L551 Evoque configurations that match the listed OEM rotor references: 349 mm front and either 300 mm or 325 mm rear. Confirm your VIN, current rotor diameter, and trim brake package before ordering.
Does the kit keep the factory electronic parking brake and auto-hold functions?
Yes, when ordered for the correct L551 rear rotor configuration, the kit retains the factory rear caliper and parking-brake architecture. The carbon-ceramic rotor, pad, hat, and floating hardware replace the service brake friction parts, not the vehicle control system.
Why replace the Evoque’s OEM iron rotors with carbon-ceramic rotors?
The main reasons are lower brake dust, lower rotating mass, and better thermal stability under repeated braking. On a 349 mm front setup, carbon-ceramic material helps reduce heat-related pedal and friction variation compared with conventional iron discs used hard.
What should I verify before placing the order?
Measure or confirm the front rotor is 349 mm and identify whether the rear rotor is 300 mm or 325 mm. Also confirm wheel clearance, VIN, trim, and whether the vehicle has had any prior brake package changes.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
