2016-2026+ Volvo XC90 CCB Big Brake Kit | Brembo GT350 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

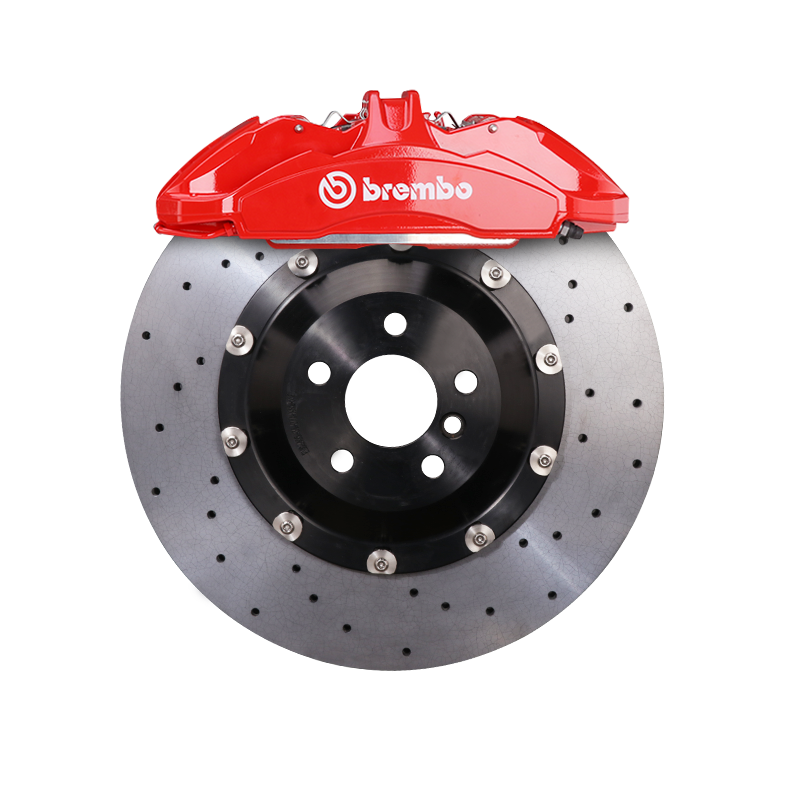

2016-2026+ Volvo XC90 CCB Big Brake Kit — Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper Front Brake Upgrade
The 2016-2026+ Volvo XC90 is a heavy three-row SUV, so front brake heat, iron-rotor dust, and repeated high-speed stops become the real reasons to move beyond the factory brake package. This StopFlex front CCB upgrade uses a 390mm carbon-ceramic rotor with a Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper to increase thermal capacity, reduce rotating mass, and clean up the brake-dust problem on open 20-inch-and-larger wheels. Each kit is built around the customer's exact XC90 trim and wheel package so bracket position, rotor-hat offset, and caliper clearance are confirmed before production.
- 390mm is the largest rotor in this XC90 front kit, so 20-inch wheels are the minimum and spoke clearance must be checked before the order is released.
- The front axle uses the exact Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper specified for this kit, paired with StopFlex carbon-ceramic rotors, pads, hats, hardware, and lines.
- XC90 T5, T6, T8, Recharge, and mild-hybrid trims can differ in weight, wheel package, and brake configuration, so StopFlex engineers the bracket and hat offset to the confirmed vehicle rather than the XC90 name alone.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo XC90 |
| Model years | 2016-2026+ |
| Front setup | Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper / 390mm |
| Rear setup | Front-only kit option |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 20" (for the 390 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 390 mm front rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front upgrade uses the Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper, a fixed multi-piston Brembo unit chosen for stable pad loading and a firmer pedal response than a smaller sliding-caliper layout. Its OEM performance-car provenance matters because the caliper was designed for high brake torque and repeated heat cycles, not as an anonymous cosmetic big-brake casting. StopFlex pairs it with the 390mm carbon-ceramic rotor, vehicle-specific hats, pads, lines, and mounting hardware for the confirmed XC90 trim.
Rear Caliper (Balance)
This kit option is front-only; the rear caliper is not included. A rear carbon-ceramic or visual-matching package can be specified on request if the buyer wants the rear axle, parking-brake hardware, and brake-bias targets engineered as part of the same build.
Front & rear, engineered together: A 390mm front CCB conversion changes front brake torque, thermal capacity, and pedal response, so StopFlex validates the package against the XC90's rear brake configuration instead of treating the front axle in isolation. If a rear package is ordered, StopFlex engineers the front and rear hardware together to preserve stable braking balance and electronic parking brake function where applicable.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper |
| Front CCB rotors | 390mm |
| Rear calipers | Not included in this kit option |
| Rear CCB rotors | Not included in this kit option |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this 390mm kit fit my exact 2016-2026+ Volvo XC90 trim?
Fitment is confirmed per vehicle, not assumed from the XC90 chassis name. StopFlex checks the exact year, trim, factory brake package, hub and knuckle details, wheel diameter, wheel offset, and spoke clearance before machining brackets and rotor hats.
What wheel size do I need for the 390mm front rotor?
The 390mm front rotor requires 20-inch wheels or larger. Wheel diameter alone is not enough; the Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper also needs spoke clearance, so StopFlex verifies the customer's actual wheel specs before production.
Does this kit keep the XC90 electronic parking brake?
This specific kit is front-only, so it does not replace the rear EPB caliper. If a rear package is requested, StopFlex engineers it around the XC90's factory electronic parking brake so rear brake serviceability and parking-brake function are addressed before the order is approved.
Why choose carbon-ceramic brakes on an XC90 instead of another iron rotor setup?
A carbon-ceramic front rotor reduces rotating mass and brake dust while giving the heavy XC90 more thermal margin during repeated highway-speed stops, mountain driving, towing-style heat loads, or spirited use. The 390mm rotor and 6-piston Brembo caliper focus the upgrade where the XC90 carries the highest braking load: the front axle.
