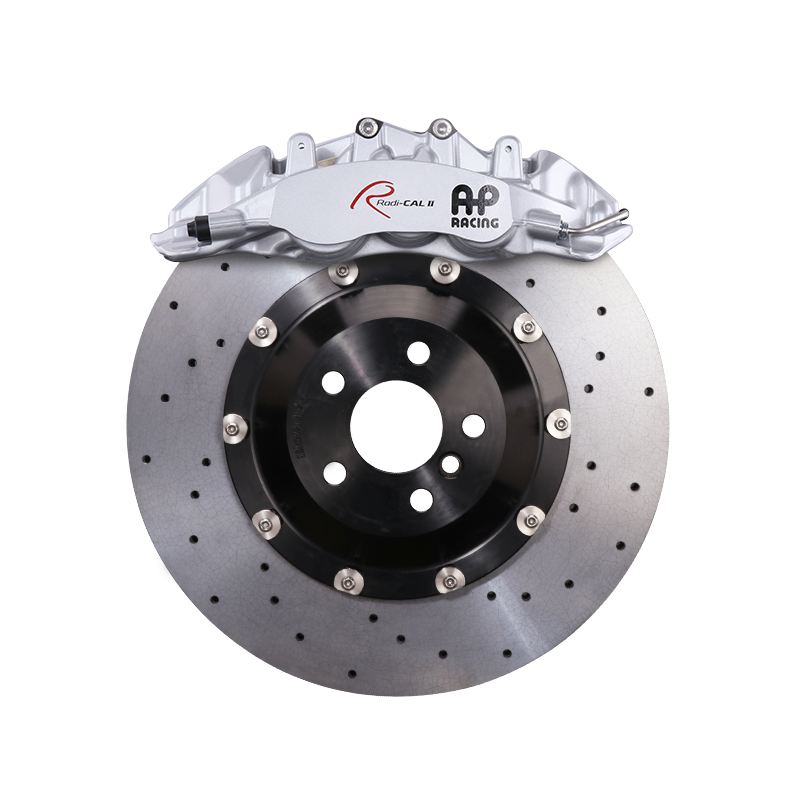

2016-2026+ Volvo XC90 CCB Big Brake Kit — Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper Front Brake Upgrade
The 2016-2026+ Volvo XC90 is a heavy SPA-platform SUV, so repeated mountain braking, towing, and fast highway stops put real heat into the front axle. This StopFlex front CCB upgrade uses 380mm carbon-ceramic rotors with Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper calipers to add thermal capacity, reduce brake dust, and remove rotating mass at the corner where the XC90 works hardest. Each kit is engineered from the buyer’s exact XC90 trim and wheel data, not assumed from the shared chassis name.
- 380mm front carbon-ceramic rotors require 19-inch or larger wheels on the XC90; wheel spoke clearance is still checked before production.
- The front axle is upgraded with Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper calipers, pads, hats, brackets, hardware, stainless lines, and carbon-ceramic rotors.
- Built for the 2016-2026+ XC90 SPA platform by exact trim, because T5/T6/B5/B6/Recharge/T8 brake packaging and wheel clearance can vary by market and equipment.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volvo XC90 |
| Model years | 2016-2026+ |
| Front setup | Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper / 380mm |
| Rear setup | Front-only kit option |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 19" (for the 380 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 380 mm front rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front axle uses the exact Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper, giving the XC90 a rigid six-piston layout for even pad loading and consistent pedal response under repeated high-energy stops. AP Racing is a known performance brake manufacturer, and the Radi-CAL II architecture is selected here for a compact, stiff caliper package around the 380mm StopFlex carbon-ceramic rotor. StopFlex matches the caliper bracket and rotor-hat offset to the customer’s confirmed XC90 trim and wheel clearance.
Rear Caliper (Balance)
This kit option is front-only; no rear caliper is included. A rear visual or performance match can be specified on request after the factory rear brake package and electronic parking brake hardware are confirmed.
Front & rear, engineered together: Because the XC90’s stability control and brake bias depend on the relationship between front torque, rear torque, ABS behavior, and tire grip, StopFlex does not treat the front kit as a generic caliper swap. Rotor diameter, pad compound, piston layout, hat offset, and line fitment are selected so the 380mm front CCB package works with the factory rear system unless a matched rear package is ordered.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper |
| Front CCB rotors | 380mm |
| Rear calipers | Not included in this kit option |
| Rear CCB rotors | Not included in this kit option |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this 380mm kit fit my exact Volvo XC90 trim?
Fitment is confirmed before production using your XC90 year, trim, factory brake package, hub and knuckle data, wheel size, wheel offset, and spoke clearance. The kit is not sold as a platform-wide bolt-on; StopFlex builds the brackets, rotor hats, and caliper mounting around your confirmed vehicle.
What wheel size is required for the 380mm front rotor?
The 380mm front carbon-ceramic rotor requires 19-inch or larger wheels. Wheel diameter alone is not enough; the Genuine AP Racing CP9560 Radi-CAL II 6-Piston Caliper also needs spoke clearance, so StopFlex checks wheel specifications before the kit is released.
Does this front kit affect the XC90 electronic parking brake?
The factory XC90 electronic parking brake is on the rear axle, and this kit option upgrades the front brakes only. EPB function is retained when the rear brake system remains factory; any rear matching package must be engineered around the EPB hardware.
Why choose carbon-ceramic brakes on an XC90 instead of larger iron rotors?
Carbon-ceramic rotors reduce brake dust, resist heat saturation, and cut rotating and unsprung mass compared with a similar-size iron rotor. On a heavy XC90, that matters most at the front axle, where repeated braking loads create the most heat and pad transfer.
