2016-2024 Volkswagen Tiguan (AD1) CCB Big Brake Kit | Brembo GT350 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

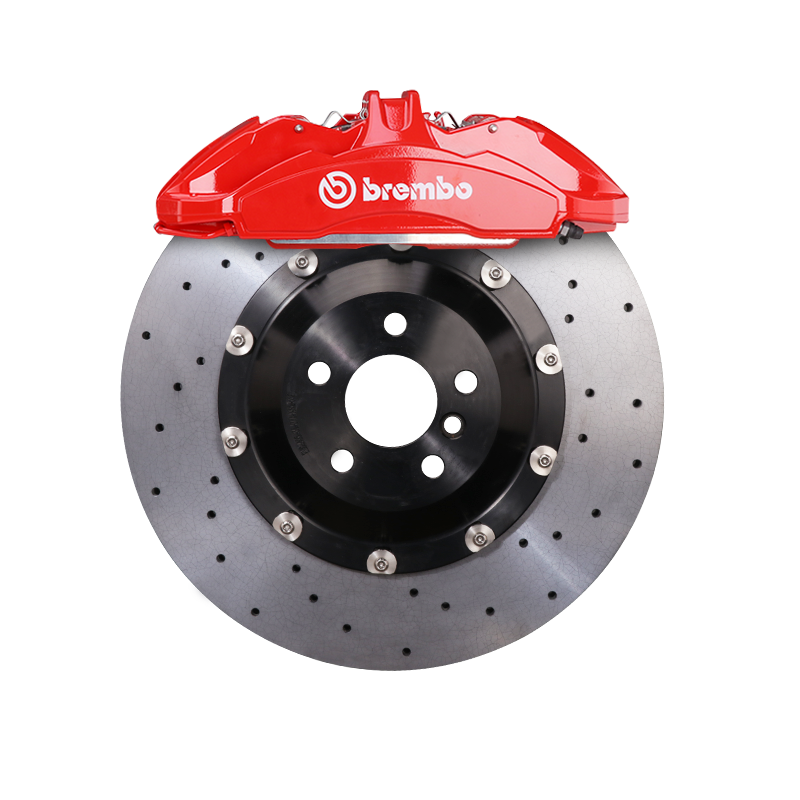

2016-2024 Volkswagen Tiguan / R (AD1) CCB Big Brake Kit — Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper Front Brake Upgrade
This 390mm StopFlex front carbon-ceramic kit is for 2016-2024 Volkswagen Tiguan / R AD1 owners who have outgrown the factory iron front brakes through heat, dust, rotor wear, or repeated high-speed stops. The front package pairs carbon-ceramic rotors with the Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper to add thermal capacity and a firmer multi-piston pedal without assuming every AD1 trim has the same knuckle, hub offset, or wheel clearance. Each kit is built around the confirmed vehicle and wheel package, with brackets and rotor hats matched to that exact Tiguan configuration.
- 390mm front carbon-ceramic rotors require 20-inch or larger wheels on the Tiguan AD1; wheels under 20 inches will not clear, and spoke clearance must still be checked.
- The front upgrade uses the exact Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper, not a generic private-label caliper.
- Brackets, rotor-hat offsets, and caliper position are engineered for the confirmed Tiguan / R AD1 trim because standard and R/R-Line configurations can differ in clearance and brake geometry.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Volkswagen Tiguan / R (AD1) |
| Model years | 2016-2024 |
| Front setup | Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper / 390mm |
| Rear setup | Front-only kit option |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 20" (for the 390 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 390 mm front rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front caliper is the Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper, a fixed multi-piston Brembo unit derived from a factory performance application rather than an anonymous aftermarket casting. Its six-piston layout spreads clamping load across the pad face to support more even pressure, a firmer pedal response, and better control of the 390mm carbon-ceramic rotor under repeated braking. StopFlex mounts it to the Tiguan AD1 with trim-specific brackets and rotor-hat geometry after the exact vehicle configuration is confirmed.
Rear Caliper (Balance)
This kit option is front-only; no rear caliper or rear rotor package is included. A rear package can be matched on request if the buyer wants a coordinated front/rear carbon-ceramic system or a rear solution that retains factory EPB function.
Front & rear, engineered together: Because this listing upgrades only the front axle, StopFlex sizes the front hardware around the Tiguan AD1’s confirmed configuration and avoids claiming an unverified platform-wide brake balance. Buyers planning aggressive track use or a full visual match should confirm a rear package so piston area, rotor diameter, pad compound, and parking-brake requirements are engineered together.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper |
| Front CCB rotors | 390mm |
| Rear calipers | Not included in this kit option |
| Rear CCB rotors | Not included in this kit option |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this 390mm kit fit my exact Tiguan AD1 trim?
Fitment is confirmed by exact year, trim, front knuckle/upright, hub geometry, existing brake package, wheel diameter, wheel offset, and spoke profile. StopFlex engineers the brackets, rotor-hat offsets, and caliper position for the specific Tiguan / R AD1 being ordered, not for every AD1 chassis by assumption.
What wheel size do I need for the 390mm front rotor?
The 390mm front rotor requires 20-inch or larger wheels. Wheels under 20 inches will not clear the rotor, and even some 20-inch wheels may need a spoke-clearance check for the Genuine Brembo OEM Ford Shelby GT350 Mustang 6-Piston Caliper.
Will the factory electronic parking brake still work?
This kit option does not replace the rear calipers, so the factory rear electronic parking brake is not changed by the front kit. If you order a matched rear package, StopFlex must confirm the Tiguan’s EPB hardware so parking brake and Auto Hold behavior are retained correctly.
Why choose carbon-ceramic instead of another iron big brake kit?
Carbon-ceramic rotors reduce brake dust, resist heat-related fade, and cut rotating unsprung mass compared with similarly sized iron hardware. On a Tiguan AD1 using a 390mm front rotor and six-piston Brembo caliper, the practical gains are cleaner wheels, more stable repeated braking, and less front-end mass at the hub.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
