2014-2016 Porsche Cayman (981) CCB Big Brake Kit | Brembo OEM Porsche 911 GT3 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

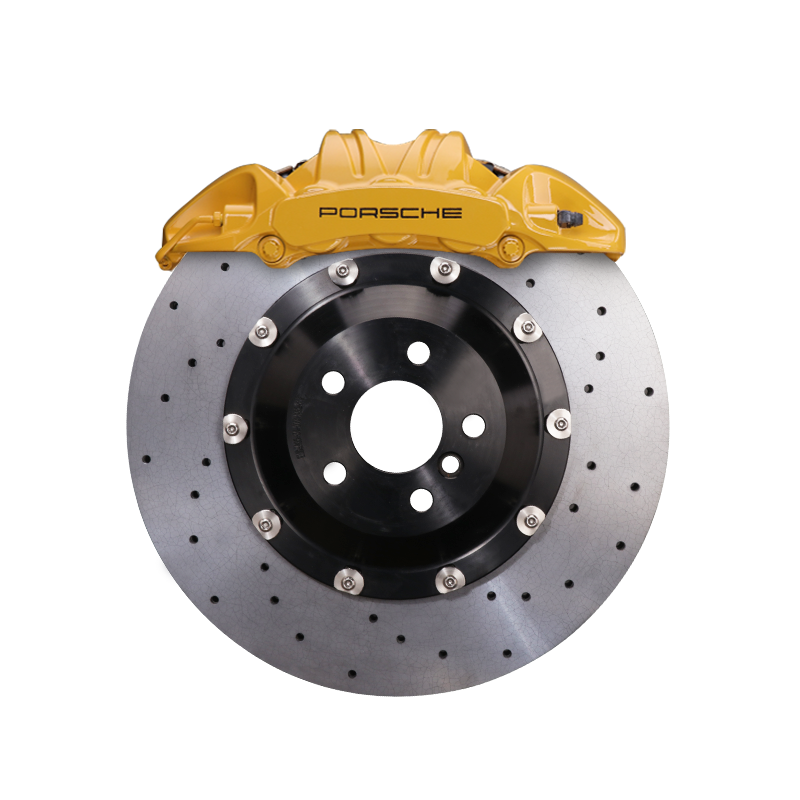

2014-2016 Porsche Cayman (981) / S / GTS / GT4 CCB Big Brake Kit — Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper Front + Genuine Brembo OEM Porsche 911 GT3 4-Piston Caliper Rear Setup
The 2014-2016 Porsche Cayman 981 is light enough for fast direction changes, but repeated track sessions and aggressive mountain driving can expose heat, dust, and consumable cost in the factory brake package. This StopFlex kit pairs a 410mm front carbon-ceramic rotor with a Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper and a 370mm rear carbon-ceramic rotor with a Genuine Brembo OEM Porsche 911 GT3 4-Piston Caliper. The payoff is higher thermal capacity, lower brake dust, reduced rotating mass versus comparable iron hardware, and a fitment package engineered to the customer’s confirmed Cayman, S, GTS, or GT4 trim rather than assumed from the 981 chassis name.
- 410mm front and 370mm rear carbon-ceramic rotors give the 981 Cayman platform a large thermal buffer for repeated high-speed braking, but they require 21-inch or larger wheels plus spoke-clearance verification.
- The front axle uses the exact Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper, matched to carbon-ceramic rotors, pads, hats, brackets, hardware, and stainless lines.
- The 981 Cayman’s factory brake pad wear-sensor system remains active with compatible sensors, so the pad-wear warning function is retained without dashboard errors.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Porsche Cayman (981) / S / GTS / GT4 |
| Model years | 2014-2016 |
| Front setup | Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper / 410mm |
| Rear setup | Genuine Brembo OEM Porsche 911 GT3 4-Piston Caliper / 370mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 21" (for the 410 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 410 mm front rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front upgrade uses the exact Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper, giving the 410mm front rotor a broad, rigid clamping package for repeatable pedal response under hard braking. Because this is a genuine OEM-derived Brembo Porsche GT3 caliper rather than a generic aftermarket casting, it is credible for buyers who want factory-level performance hardware adapted to the 981 Cayman. StopFlex matches the caliper mounting, bracket geometry, rotor-hat offset, pads, lines, and hardware to the customer’s confirmed Cayman, Cayman S, Cayman GTS, or Cayman GT4 trim.
Rear Caliper (Balance)
The rear axle uses a Genuine Brembo OEM Porsche 911 GT3 4-Piston Caliper with a 370mm carbon-ceramic rotor to keep rear braking contribution stable instead of leaving the car with a front-heavy mismatch. The rear package is engineered around the 981 Cayman’s electronic parking brake requirements and factory pad-wear sensor compatibility.
Front & rear, engineered together: The 410mm front and 370mm rear package is engineered as one brake system so piston area, rotor diameter, pad selection, hat offset, and line routing work together. A matched front/rear conversion is especially important on the mid-engine 981 Cayman because rear stability under trail braking depends on controlled brake bias, not simply adding the largest possible front caliper.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper |
| Front CCB rotors | 410mm |
| Rear calipers | Genuine Brembo OEM Porsche 911 GT3 4-Piston Caliper |
| Rear CCB rotors | 370mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Brake pad wear sensors | Included; 100% compatible with the OEM wear-sensor system. |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact 2014-2016 Cayman 981 trim?
StopFlex does not treat Cayman, Cayman S, Cayman GTS, and Cayman GT4 as one universal fitment. Your brackets, rotor-hat offsets, caliper mounting, lines, and hardware are engineered after confirming the exact trim, brake package, hub/upright details, and wheel setup.
What wheels are required for the 410mm front rotor?
The 410mm front rotor requires 21-inch or larger wheels; wheels under 21 inches will not clear the rotor diameter. Spoke clearance also has to be checked against the Genuine Brembo OEM Porsche 911 GT3 6-Piston Caliper before the kit is built.
Will the electronic parking brake and pad-wear warning still work?
Yes. The 981 Cayman uses an electronic parking brake, and this rear package is engineered to retain the EPB function. The kit also uses brake pad wear sensors compatible with the Porsche OEM wear-sensor system, so the factory pad-wear warning continues to work without dashboard errors.
Why convert a Cayman 981 to carbon-ceramic brakes?
The main reasons are heat capacity, lower brake dust, lower rotating mass than comparable iron hardware, and longer service life when used correctly. On a 981 Cayman that sees track days or repeated high-speed road braking, the 410mm / 370mm carbon-ceramic setup gives more thermal headroom than the factory-size iron package.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
