2022-2026+ Mercedes-Maybach S-Class (Z223) CCB Big Brake Kit | OEM AMG 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

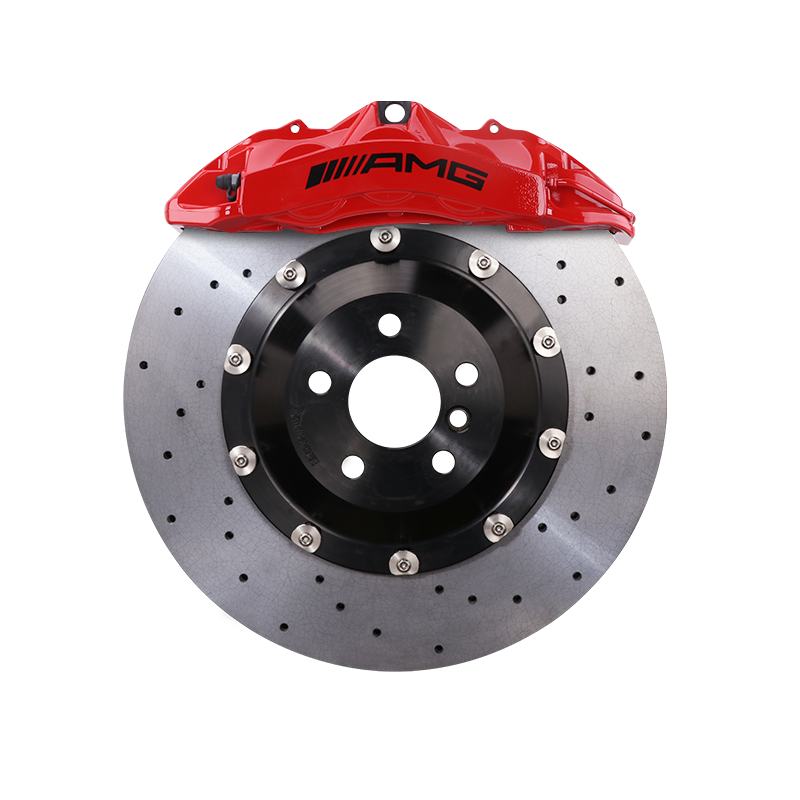

2022-2026+ Mercedes-Maybach S580 / S680 (Z223) CCB Big Brake Kit — Genuine OEM AMG 6-Piston Caliper Front + Genuine OEM AMG EPB Single-Piston Caliper Rear Setup
The Z223 Mercedes-Maybach S580 and S680 carry limousine mass, long-wheelbase load, and open-wheel styling that make iron-rotor heat, brake dust, and unsprung weight more noticeable than on a smaller sedan. This StopFlex kit pairs a 390mm front carbon-ceramic rotor with the Genuine OEM AMG 6-Piston Caliper, then matches it to a 380mm rear carbon-ceramic rotor with the Genuine OEM AMG EPB Single-Piston Caliper. The result is higher thermal capacity, lower dust, reduced rotating mass, and confirmed fitment for the buyer’s exact S580 or S680 configuration rather than a generic W223/Z223 assumption.
- 390mm front and 380mm rear carbon-ceramic rotors are sized for the Z223 Maybach S580 / S680’s weight and require at least 20-inch wheels with verified spoke clearance.
- The front upgrade uses the exact Genuine OEM AMG 6-Piston Caliper, giving this Maybach a factory-derived multi-piston front clamp instead of a universal aftermarket caliper swap.
- The rear package keeps the AMG EPB Single-Piston Caliper architecture so the Maybach’s electronic parking brake function is retained when the rear kit is ordered.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-Maybach S580 / S680 (Z223) |
| Model years | 2022-2026+ |
| Front setup | Genuine OEM AMG 6-Piston Caliper / 390mm |
| Rear setup | Genuine OEM AMG EPB Single-Piston Caliper / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 20" (for the 390 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 390 mm front rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front axle uses the Genuine OEM AMG 6-Piston Caliper, a fixed multi-piston design that spreads clamping force across the pad for stable pedal response on a heavy Z223 sedan. Its OEM AMG provenance matters because the caliper was developed for Mercedes performance applications, not adapted from a generic catalog body. StopFlex engineers the caliper mounting and 390mm carbon-ceramic rotor-hat offset to the confirmed S580 or S680 trim and wheel package.
Rear Caliper (Balance)
The rear axle uses the Genuine OEM AMG EPB Single-Piston Caliper with a 380mm carbon-ceramic rotor to preserve rear brake contribution and chassis stability under deceleration. Because it is an EPB rear caliper configuration, the kit is built to retain the Maybach’s electronic parking brake function.
Front & rear, engineered together: The 390mm front and 380mm rear package is engineered as a complete brake system so front torque, rear contribution, rotor mass, and pad behavior are matched. That matters on the Z223 because a front-only increase can change brake balance, pedal feel, and stability during repeated high-speed stops.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine OEM AMG 6-Piston Caliper |
| Front CCB rotors | 390mm |
| Rear calipers | Genuine OEM AMG EPB Single-Piston Caliper |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact 2022-2026+ Maybach S580 or S680?
Fitment is confirmed per car before production. StopFlex verifies your exact Z223 trim, factory brake package, hub geometry, wheel specs, and spoke clearance, then engineers the brackets, rotor hats, offsets, and caliper mounting for that confirmed configuration.
What wheel size is required for the 390mm front rotor?
The largest rotor in this kit is 390mm, so wheels under 20 inches will not clear it. A 20-inch or larger wheel is still checked for barrel and spoke clearance because the Genuine OEM AMG 6-Piston Caliper needs radial and face clearance.
Will the electronic parking brake still work?
Yes, when ordered with the rear package, the kit uses the Genuine OEM AMG EPB Single-Piston Caliper with the 380mm rear carbon-ceramic rotor so the Z223 Maybach’s electronic parking brake function is retained.
Why convert a Maybach S580 or S680 to carbon-ceramic brakes?
Carbon-ceramic rotors reduce brake dust, rotating mass, and heat-related fade compared with iron rotors, which matters on a long-wheelbase luxury sedan with substantial curb weight. The 390mm front and 380mm rear sizing gives the car thermal capacity without oversizing beyond a 20-inch-wheel fitment envelope.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
