2024-2026+ Mercedes-Benz CLE-Class / AMG (C236/A236) CCB Big Brake Kit | OEM AMG 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
2024-2026+ Mercedes-Benz CLE300 / CLE450 / CLE53 (C236/A236) CCB Big Brake Kit — Genuine OEM AMG 6-Piston Caliper Front + Genuine OEM AMG 4-Piston Caliper Rear Setup
This StopFlex kit is for CLE300, CLE450 and CLE53 owners who want AMG-level brake hardware with carbon-ceramic heat control, cleaner wheels and less rotating mass than iron rotors. The package uses a Genuine OEM AMG 6-Piston Caliper with a 390mm front carbon-ceramic rotor and a Genuine OEM AMG 4-Piston Caliper with a 380mm rear carbon-ceramic rotor, so brake torque, thermal capacity and appearance are upgraded as a complete system. Because CLE trims can differ in knuckle, hub and wheel-offset geometry, each kit is engineered to the buyer’s confirmed C236 or A236 trim rather than assumed from the chassis code.
- 390mm front carbon-ceramic rotors require 20-inch or larger wheels on the CLE C236/A236; spoke clearance is checked separately because barrel diameter alone is not enough.
- Front braking is built around the exact Genuine OEM AMG 6-Piston Caliper specified for this kit, paired with StopFlex carbon-ceramic rotors, pads, hats, brackets, hardware and lines.
- CLE300, CLE450 and CLE53 fitment is confirmed per trim because AMG-performance variants can use different upright, hub and clearance geometry than standard CLE models.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Mercedes-Benz CLE300 / CLE450 / CLE53 (C236/A236) |
| Model years | 2024-2026+ |
| Front setup | Genuine OEM AMG 6-Piston Caliper / 390mm |
| Rear setup | Genuine OEM AMG 4-Piston Caliper / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 20" (for the 390 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 390 mm front rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)

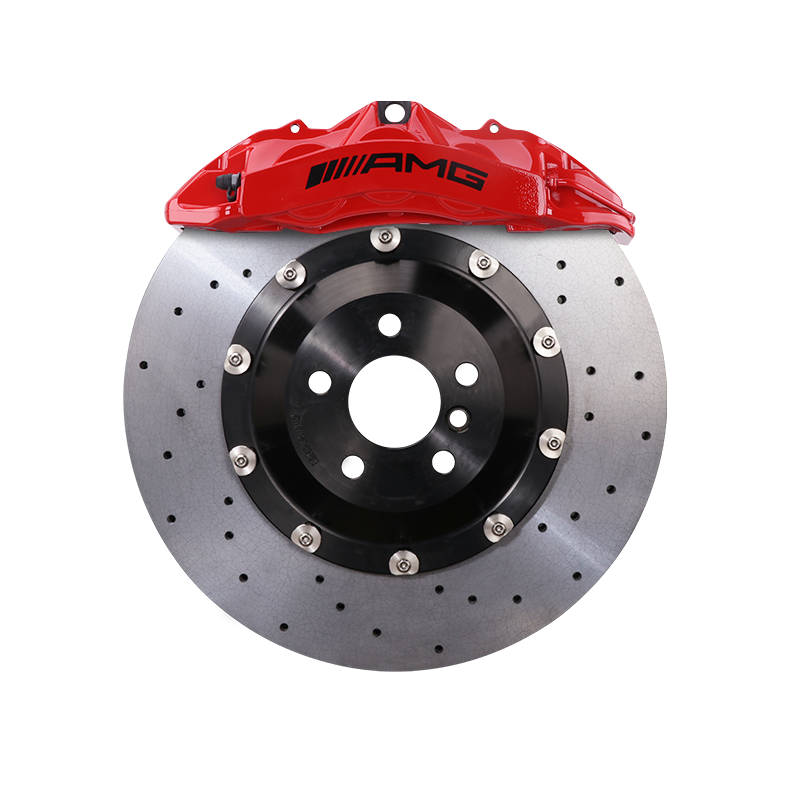

The front upgrade uses the Genuine OEM AMG 6-Piston Caliper, giving the CLE a rigid multi-piston front clamp package for more even pad loading and a firmer pedal response under repeated high-energy stops. Its OEM AMG provenance matters because the caliper architecture is derived from factory performance braking hardware rather than a cosmetic caliper shell. StopFlex matches the caliper to 390mm carbon-ceramic front rotors, vehicle-specific hats, brackets, pads, hardware and lines for the confirmed trim.
Rear Caliper (Balance)
The rear axle uses the Genuine OEM AMG 4-Piston Caliper with a 380mm carbon-ceramic rotor, so rear brake contribution is upgraded instead of leaving the chassis with a front-heavy retrofit. On CLE variants equipped with factory electronic parking brake functionality, the rear package is configured to retain the vehicle’s EPB operation when specified during fitment confirmation.
Front & rear, engineered together: The 390mm front and 380mm rear package is engineered as a matched system so brake bias, pad area, rotor thermal capacity and hydraulic behavior are considered together. That matters on the CLE because installing a large front-only package can change stability, ABS behavior and pedal balance if the rear axle is not matched to the same upgrade plan.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine OEM AMG 6-Piston Caliper |
| Front CCB rotors | 390mm |
| Rear calipers | Genuine OEM AMG 4-Piston Caliper |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact CLE300, CLE450 or CLE53?
Fitment is confirmed for your exact C236 or A236 trim before the kit is built. StopFlex does not assume that every CLE sharing the chassis code uses the same knuckles, hubs, caliper mounts or rotor-hat offsets, so brackets and hats are matched to the confirmed vehicle.
What wheels are required for the 390mm front rotor?
The 390mm front carbon-ceramic rotor requires 20-inch or larger wheels. Wheel spoke shape, offset and barrel profile still matter, so StopFlex verifies wheel clearance before production rather than relying only on the wheel diameter.
Will the electronic parking brake still work?
Yes, when the vehicle is ordered and configured as an EPB-compatible rear setup. The CLE uses an electronic parking brake, so the rear caliper and hardware package are specified to preserve parking-brake, Auto Hold and service-mode compatibility where applicable.
Why choose this kit instead of replacing the factory iron brakes?
Carbon-ceramic rotors reduce brake dust, lower rotating mass and tolerate repeated heat cycles better than iron rotors in aggressive street and track-day use. This kit also adds the Genuine OEM AMG 6-Piston Caliper front package and matched 380mm rear carbon-ceramic hardware instead of simply refreshing the stock brake layout.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
