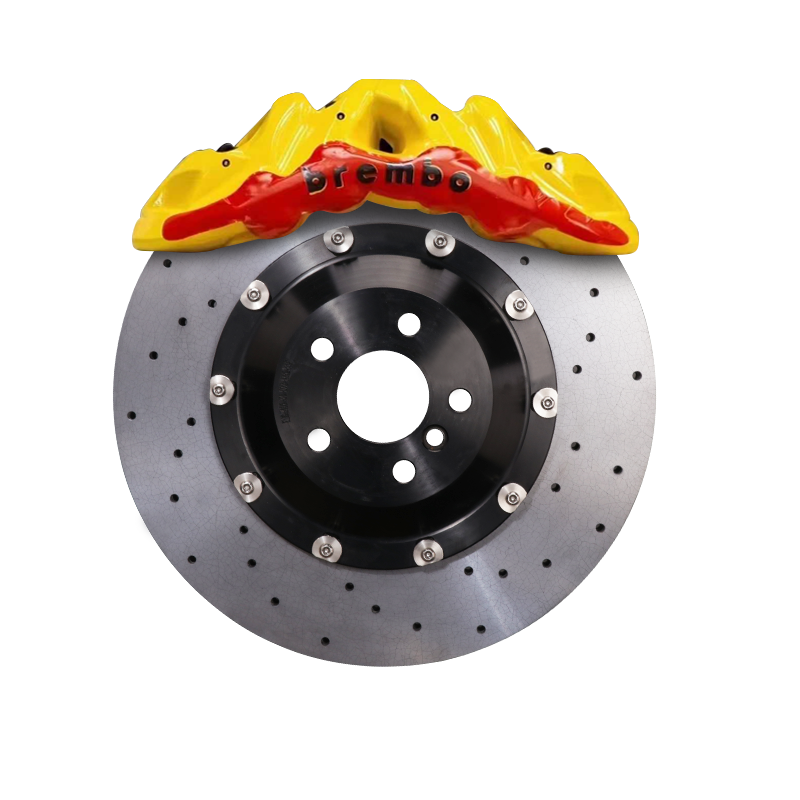

2022-2026+ Land Rover Range Rover / SV (L460) CCB Big Brake Kit — Genuine Brembo GT BM8 8-Piston Caliper Front + Genuine Brembo GT BM4 4-Piston Caliper Rear Setup
The 2022-2026+ Range Rover L460 is heavy, powerful, and frequently ordered with large open wheels that make brake dust and heat cycling easy to see. This StopFlex kit replaces the front with a 410mm carbon-ceramic rotor and Genuine Brembo GT BM8 8-Piston Caliper, then matches it with a 380mm rear carbon-ceramic rotor and Genuine Brembo GT BM4 4-Piston Caliper for balanced front-to-rear braking. The payoff is higher thermal capacity, lower rotating mass than comparable iron hardware, reduced pad dust, and fitment engineered around the exact Range Rover or SV trim rather than a generic L460 assumption.
- 410mm front carbon-ceramic rotors require 21-inch or larger wheels on the Range Rover L460; spoke clearance is verified before the kit is built.
- Front hardware uses the exact Genuine Brembo GT BM8 8-Piston Caliper with a 410mm rotor, sized for the L460’s mass and repeated high-speed braking demand.
- Rear hardware uses a Genuine Brembo GT BM4 4-Piston Caliper with a 380mm carbon-ceramic rotor so the rear axle contributes stability instead of leaving the upgrade front-biased.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Land Rover Range Rover / SV (L460) |
| Model years | 2022-2026+ |
| Front setup | Genuine Brembo GT BM8 8-Piston Caliper / 410mm |
| Rear setup | Genuine Brembo GT BM4 4-Piston Caliper / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 21" (for the 410 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 410 mm front rotor, so the minimum wheel size is 21". Wheels under 21" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The front axle uses the Genuine Brembo GT BM8 8-Piston Caliper, giving the 410mm carbon-ceramic rotor a wide, controlled clamp area for consistent pedal response under repeated stops. Brembo GT hardware is a proven performance-brake architecture, and StopFlex pairs it with trim-specific brackets and hat offsets for the confirmed Range Rover L460 or SV configuration. The caliper is selected as the primary upgrade because the front axle carries the highest braking load on this vehicle.
Rear Caliper (Balance)
The rear axle uses the Genuine Brembo GT BM4 4-Piston Caliper with a 380mm carbon-ceramic rotor to support brake balance, rear-axle stability, and pedal consistency. Because the L460 uses an electronic parking brake system, rear fitment is engineered to retain the required EPB function for the confirmed trim configuration.
Front & rear, engineered together: The 410mm BM8 front and 380mm BM4 rear package is engineered as a matched system so the Range Rover does not get a front-only torque increase with an under-supported rear axle. StopFlex confirms piston package, rotor diameter, hat offset, bracket geometry, and wheel clearance together before production.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo GT BM8 8-Piston Caliper |
| Front CCB rotors | 410mm |
| Rear calipers | Genuine Brembo GT BM4 4-Piston Caliper |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact Range Rover L460 or SV trim?
Fitment is confirmed per vehicle, not assumed from the L460 chassis name. StopFlex matches the brackets, rotor-hat offsets, and caliper mounting to your exact model year, trim, factory brake package, hub geometry, and wheel data before the kit is built.
What wheels are required for the 410mm front rotor?
The 410mm front carbon-ceramic rotor requires 21-inch or larger wheels. Diameter is only one check; spoke shape, barrel profile, offset, and caliper face clearance must also clear the Genuine Brembo GT BM8 8-Piston Caliper.
Will the electronic parking brake still work?
Yes, the rear package is engineered around the L460’s factory electronic parking brake requirement. EPB compatibility is confirmed during order review because rear caliper and actuator packaging can vary by trim and market configuration.
Why switch this Range Rover from iron brakes to carbon-ceramic?
Carbon-ceramic rotors reduce brake dust on open Range Rover wheels, cut rotating mass compared with similar-size iron rotors, and tolerate repeated heat cycles better under heavy road use. This kit also gives the L460 a matched 410mm front and 380mm rear brake package rather than only changing front appearance.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
