2020-2024 BMW 2 Series (F44) CCB Big Brake Kit | Brembo GT500 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide
2020-2024 BMW 2 Series (F44) CCB Big Brake Kit — Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper Front + Genuine Brembo GT4 Rear Setup
The 2020-2024 BMW 2 Series F44 Gran Coupe owner shopping this kit is usually trying to solve heat, dust, and wheel-fill limits that the factory iron brake package cannot address on a hard-driven 228i xDrive or M235i xDrive. This StopFlex kit pairs a 380 mm front carbon-ceramic rotor with the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper, then matches the rear with 355 mm carbon-ceramic rotors and Brembo 4-piston options so the car gains heat capacity, lower rotating mass, and lower brake dust without guessing at F44 fitment. Brackets, rotor-hat offsets, caliper mounting, lines, and hardware are built for the customer's confirmed F44 trim, not for a generic platform listing.
- 380 mm front carbon-ceramic rotors require 19-inch or larger wheels on the BMW 2 Series F44; wheels under 19 inches will not clear the rotor, and spoke clearance must be checked against the Shelby GT500 6-piston caliper profile.
- Front hardware uses the exact Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper, giving the F44 a fixed multi-piston front caliper package instead of relying on the factory sliding-caliper architecture found on many non-M F44 brake configurations.
- Rear choices are Brembo V4 / GT4 / GTS4 4-Piston Caliper Options on 355 mm carbon-ceramic rotors: V4 uses the Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper, GT4 uses the Genuine Brembo GT | M4 4-Piston Caliper, and GTS4 uses the Genuine Brembo GT | S4 4-Piston Caliper.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | BMW 2 Series (F44) |
| Model years | 2020-2024 |
| Front setup | Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper / 380mm |
| Rear setup | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options / 355mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 19" (for the 380 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 380 mm front rotor, so the minimum wheel size is 19". Wheels under 19" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance

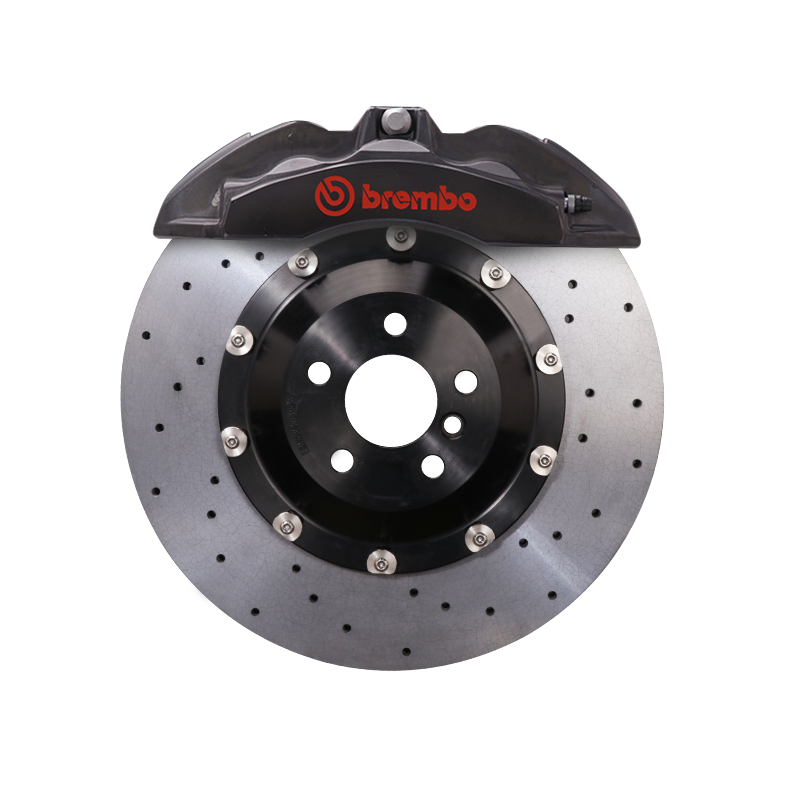

Front Caliper (Primary Upgrade)
The front upgrade uses the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper, a fixed 6-piston Brembo unit selected for high thermal load and consistent pad pressure across the 380 mm front rotor. Its OEM-derived Brembo provenance matters on an F44 big-brake conversion because the caliper was designed for a heavy, high-output performance application rather than as an anonymous aftermarket casting. StopFlex engineers the bracket, radial position, hat offset, and line routing for the customer's exact BMW 2 Series F44 trim before production.
Rear Caliper (Balance)
The rear system uses Brembo V4 / GT4 / GTS4 4-Piston Caliper Options with 355 mm carbon-ceramic rotors to support rear brake torque, straight-line stability, and front-to-rear balance under repeated braking. Rear EPB function must be addressed during configuration because the F44 uses an electronic parking-brake actuator system from the factory.
Front & rear, engineered together: The 380 mm front and 355 mm rear carbon-ceramic packages are engineered together so piston area, rotor diameter, pad choice, and rear caliper selection do not create a front-heavy mismatch. That matters on the F44 because a front-only oversized conversion can change ABS behavior, rear contribution, and trail-braking stability if the rear system is not matched to the new front torque capacity.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper |
| Front CCB rotors | 380mm |
| Rear calipers | Brembo V4 / GT4 / GTS4 4-Piston Caliper Options |
| Rear CCB rotors | 355mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
| Rear caliper option mapping | V4 = Genuine Brembo OEM Cadillac CTS-V 4-Piston Caliper — 355 mm rotor GT4 = Genuine Brembo GT | M4 4-Piston Caliper — 355 mm rotor GTS4 = Genuine Brembo GT | S4 4-Piston Caliper — 355 mm rotor |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
FAQ
Will this kit fit my exact 2020-2024 BMW 2 Series F44 trim?
StopFlex does not treat every F44 as the same car. Your kit is engineered after confirming the exact trim, factory brake package, hub and knuckle configuration, wheel size, wheel offset, and intended rear caliper option, then the brackets and rotor-hat offsets are produced for that specific configuration.
What wheels are required for the 380 mm front rotor?
The 380 mm front carbon-ceramic rotor requires 19-inch or larger wheels; wheels under 19 inches will not clear the rotor. Spoke clearance also has to be checked because the Genuine Brembo OEM Ford Shelby GT500 Mustang 6-Piston Caliper is physically larger than the factory F44 front caliper package.
Will the electronic parking brake still work?
The F44 uses an electronic parking brake at the rear, so EPB retention is handled during rear-kit configuration rather than assumed. StopFlex verifies the rear brake hardware and EPB requirements before specifying the 355 mm rear rotor and the V4, GT4, or GTS4 4-piston caliper option.
Why choose carbon-ceramic rotors on an F44 instead of another iron big-brake kit?
Carbon-ceramic rotors reduce brake dust, lower rotating and unsprung mass versus comparable iron rotors, and tolerate repeated high-temperature braking better when paired with the correct pad compound. On the F44, the 380 mm front and 355 mm rear sizing also gives more thermal capacity and visual wheel fill than the factory brake package while keeping the kit trim-specific.
Need Fitment Confirmation?
Send the exact vehicle details, current rotor sizes, and caliper type before ordering.
