2008-2016 Audi A5 / S5 / RS5 (B8) CCB Big Brake Kit | Akebono 9N 6-Piston
Official Warranty: 1‑year free replacement for quality defects or coating issues under normal (non-track) use.
We Ship Worldwide

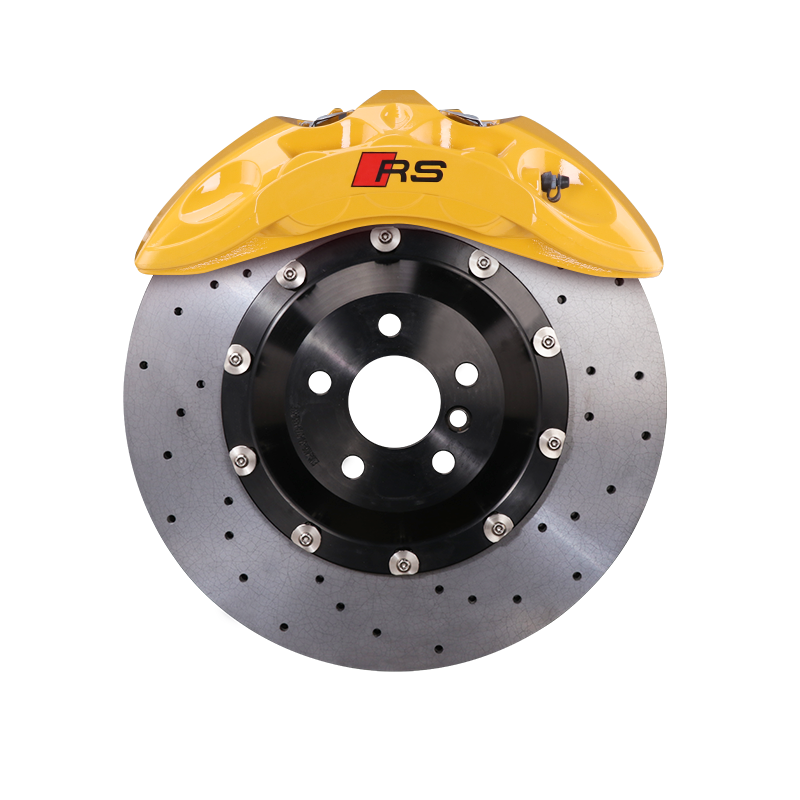

2008-2016 Audi A5 / S5 / RS5 (B8) CCB Big Brake Kit — Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper Front + TTSPORT EP4 4-Piston Caliper with EPB Rear Setup
The 2008-2016 Audi A5, S5, and RS5 B8 buyer usually reaches this kit after repeated heat fade, heavy iron brake dust, or the cost of replacing large factory brake components. StopFlex builds this upgrade around a 400mm front carbon-ceramic rotor with the Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper and a 380mm rear carbon-ceramic rotor with TTSPORT EP4 EPB calipers, giving the chassis more thermal capacity while reducing rotating mass and wheel contamination. Because B8 A5, S5, and RS5 trims can differ in knuckle, hub, and wheel-offset requirements, the brackets, hats, and mounting package are confirmed per exact car before production.
- 400mm front carbon-ceramic rotors require 20-inch or larger wheels on the B8 A5/S5/RS5; wheels under 20 inches will not clear the rotor, and spoke clearance must still be checked against the Akebono caliper.
- The front axle uses the Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper with StopFlex carbon-ceramic rotors, pads, hats, hardware, brackets, and lines matched to the confirmed trim.
- The rear axle pairs a 380mm carbon-ceramic rotor with the TTSPORT EP4 4-Piston Caliper with EPB so the B8 chassis gains rear thermal capacity without deleting the factory electronic parking brake function.
Fitment Hard Lines
| Field | Specification |
|---|---|
| Vehicle | Audi A5 / S5 / RS5 (B8) |
| Model years | 2008-2016 |
| Front setup | Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper / 400mm |
| Rear setup | TTSPORT EP4 4-Piston Caliper with EPB / 380mm |
| Page type | Complete CCB kit upgrade |
| Minimum wheel size | 20" (for the 400 mm front rotor) |
Every StopFlex kit is bespoke-engineered for your exact model and trim — the brackets, rotor-hat offsets, and caliper mounting are matched to your specific car, not assumed from the platform. This matters because trims that share a chassis name can differ mechanically: a pure M or performance variant often carries different front knuckles/uprights, hub geometry, and wheel axial (ET) clearance than the standard models in the same family, so a bracket and hat offset that bolt onto one are not the same parts that fit the other. StopFlex supplies the calipers, pads, rotor hats, floating hardware, and brake lines as a matched system built to your confirmed trim. Cars with modified knuckles, modified uprights, or non-factory suspension mounting points must be reviewed before ordering and are not treated as direct-fit.
This setup uses a 400 mm front rotor, so the minimum wheel size is 20". Wheels under 20" will not clear the caliper and rotor, and spoke profile and offset affect clearance too — confirm your exact wheels before ordering.
| Wheel Size (Standard) | Disc Range |
|---|---|
| 15" | 260 mm – 285 mm |
| 16" | 285 mm – 300 mm |
| 17" | 300 mm – 330 mm |
| 18" | 330 mm – 355 mm |
| 19" | 355 mm – 380 mm |
| 20" | 380 mm – 400 mm |
| 21" | 400 mm – 420 mm |
| 22" | 420 mm – 440 mm |
Caliper Overview — Front & Rear Balance
Front Caliper (Primary Upgrade)
The Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper gives the front axle a six-piston fixed-caliper layout for more even pad loading and a firmer response than a smaller sliding-caliper setup. Its credibility comes from being a genuine OEM-derived Audi RS/Akebono unit rather than a cosmetic aftermarket shell, so the caliper choice is based on proven OE performance hardware. StopFlex matches its mounting position, rotor-hat offset, pad sweep, and line routing to the buyer’s confirmed A5, S5, or RS5 B8 configuration.
Rear Caliper (Balance)
The TTSPORT EP4 4-Piston Caliper with EPB adds real rear service-brake capacity through four hydraulic pistons while preserving the car’s electronic parking brake through a dedicated EPB actuator piston. On this 380mm rear package, the rear caliper helps keep brake balance and high-speed stability aligned with the much larger 400mm front axle.
Front & rear, engineered together: This kit is engineered as a front-and-rear system so the 400mm Akebono front conversion is not paired with an undersized rear axle that overheats or changes the car’s brake balance under repeated stops. The TTSPORT EP4 rear caliper shares the EP4S engineering concept: four hydraulic service pistons plus one EPB actuator piston, two-piece heat-insulated pistons with dust boots, a forged-aluminum body, and OE parking-brake convenience retained.
Make It Yours — Color & Logo Customization
Every StopFlex kit-upgrade order can be finished with custom caliper colors, a custom caliper logo, and custom rotor hat colors, so the brake package matches your exact build instead of a fixed off-the-shelf look.
- Custom caliper color
- Custom caliper logo
- Custom rotor hat color
Why StopFlex CCB
Lower Unsprung Mass
StopFlex carbon-ceramic rotors are engineered to reduce rotor mass versus comparable iron discs, helping the suspension react cleaner and the steering feel more precise.
High-Temperature Stability
The carbon-silicon-carbide matrix is built for stable braking behavior at temperatures that can push iron rotors into heavy fade.
Rust-Free Rotor Surface
Carbon ceramic does not form orange flash rust after rain, washing, or storage, keeping the visible rotor face cleaner behind open wheels.
Long Street-Service Potential
In normal road use with matched pads and proper bedding, StopFlex CCB rotors are designed for far longer service life than typical iron replacement rotors.
Low Visible Dust
When paired with matched StopFlex pads, the system produces very low visible brake dust compared with conventional iron rotor and pad combinations.
Premium Ceramic-Glaze Appearance
StopFlex's proprietary coating creates a bright, high-end ceramic-glaze finish with subtle glaze texture and a more premium visual character behind open wheels.
Street-Usable Cold Bite
Street Spec and Track-Day Spec rotors are designed for normal first-stop road use, including cold-weather operation. Motorsport Spec is the competition-focused exception.
Continuous Fiber Reinforcement
Long-fiber carbon ceramic construction improves structural strength and thermal durability versus chopped-fiber approaches.
Heat Management Note
Carbon ceramic rotors tolerate extreme surface temperature, but they do not remove every heat-management requirement. During repeated hard stops, heat can still soak into pads, fluid, seals, calipers, wheels, and nearby components. For long track sessions, mountain descents, or sustained aggressive driving, brake cooling and high-temperature fluid are still recommended.
Street / Track-Day / Motorsport Rotor Options
Street Spec
Ceramic coating, cross-drilled face, and large cooling channels.
Best for daily driving and premium street builds that need clean cold bite, low dust, corrosion-free appearance, and long service life.
Track-Day Spec
Ceramic coating, blank face, and honeycomb cooling channels.
Best for fast-road and track-day use where repeated braking stability matters more than maximum visual drilling style.
Motorsport Spec
Uncoated blank face with honeycomb cooling channels.
Best for race-focused builds that run competition pads, high-temperature fluid, cooling strategy, and a proper warm-up window. Not the default street choice.
Package Scope
| Item | Details |
|---|---|
| Front calipers | Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper |
| Front CCB rotors | 400mm |
| Rear calipers | TTSPORT EP4 4-Piston Caliper with EPB |
| Rear CCB rotors | 380mm |
| CCB brake pads | Matched for the supplied StopFlex carbon ceramic rotors |
| Rotor hats and floating hardware | Vehicle-specific hardware package |
| Brake lines | Included for complete kit-upgrade orders |
| Color customization | Custom caliper colors, a custom caliper logo, and custom rotor hat colors are available for every kit-upgrade order. |
| Order scope | Default listing is full-car set when front and rear are specified. Front-only or rear-only orders can be arranged after confirmation. |
EPB & Rear Caliper Options
This vehicle leaves the factory with an electronic parking brake (EPB) built into the rear brake, so the rear of the kit is built to keep that EPB working. There are two rear paths. The first is a dual-caliper rear: a main performance caliper handles braking while a dedicated EPB actuator caliper is retained alongside it, so the electronic parking brake, auto-hold, and hill-start assist all keep working; on this path the rear performance caliper can be the TTSPORT EP4 / EP4S 4-piston caliper. The second is an EPB-integrated caliper, a single rear caliper with the electromechanical parking-brake motor built in for a cleaner install with fewer parts behind the wheel; on this path the rear is the TTSPORT EP4 / EP4S 4-piston caliper with integrated EPB. Which path fits best depends on your exact trim and EPB configuration, your budget, your appearance preference, and your wheel size and spoke clearance. Confirm your car's rear-brake configuration with StopFlex before ordering so the correct EPB-compatible rear option is built for your kit.
| Rear option | What it is | Rear caliper | Best when |
|---|---|---|---|
| Dual caliper (EPB retained) | Performance caliper plus a dedicated EPB actuator caliper, both fitted on the rear, so the factory electronic parking brake keeps working. | TTSPORT EP4 / EP4S 4-Piston Caliper | You want guaranteed factory EPB, auto-hold, and hill-start behavior preserved. |
| EPB-integrated caliper | A single rear caliper with the electromechanical parking-brake motor built in, for a cleaner install with fewer parts behind the wheel. | TTSPORT EP4 / EP4S 4-Piston Caliper with integrated EPB | You want a cleaner single-caliper rear with full EPB function. |
TTSPORT EP4S rear caliper specification (the EP4 shares the same engineering, slightly more compact):
| Specification | EP4S |
|---|---|
| Axle position | Rear |
| Piston count | 4 hydraulic + 1 EPB actuator |
| Piston type | Two-piece heat-insulated, dust boots + EPB actuator |
| Piston diameter | 28 mm × 4 / 27 mm × 1 |
| Total piston area | 30.4 cm² per caliper |
| Manufacturing process | Two-piece forged aluminum body |
| Net weight | 4.50 kg per caliper (no pads) |
| Surface finish | High-temperature gloss coating |
| Recommended wheel size | 18 in or larger |
FAQ
Will this 400mm kit fit every Audi A5, S5, and RS5 B8 the same way?
No. StopFlex confirms the exact year, model, trim, drivetrain, hub geometry, upright/knuckle configuration, and wheel setup before machining brackets and rotor hats. A B8 A5, S5, and RS5 can share a chassis name while requiring different offsets or mounting details.
What wheel size do I need for the 400mm front rotor?
The 400mm front rotor requires 20-inch or larger wheels; wheels under 20 inches will not clear it. Spoke profile and wheel offset also matter, so StopFlex checks caliper-template clearance for the Genuine Akebono OEM Audi RS 6-Piston (9N) Caliper before the kit is finalized.
Will the electronic parking brake still work?
Yes. The rear package uses the TTSPORT EP4 4-Piston Caliper with EPB, which has four hydraulic service pistons for braking and a dedicated EPB actuator piston for the factory parking-brake function.
Why choose carbon-ceramic rotors on a B8 A5, S5, or RS5 instead of another iron big-brake kit?
Carbon-ceramic rotors target the problems that push B8 owners into a brake upgrade: heat capacity under repeated braking, reduced brake dust on open wheels, lower rotating mass, and replacement economics compared with dealer carbon-ceramic parts. The payoff depends on correct pad choice, wheel clearance, and trim-specific fitment, which are confirmed before the kit is built.
